Frequency Type High Viscosity Stainless Steel Lobe Pump Food Transfer Pump

We goal to understand excellent disfigurement from the manufacturing and supply the top support to domestic and abroad clients wholeheartedly for Rotary Gear Pump With Motor, High Viscosity Metering Pump, Geared Flow Dividers. Our company focuses on customers and is willing to solve problems for customers, and provide support and after-sales service in consideration of customers' various needs. We actively introduce excellent professional and technical personnel, improve testing methods, develop new products, and continuously enhance the stamina of the company' s development. We use our own industry experience and customers to constantly put forward suggestions in all aspects.

Main features of frequency gear metering pump

The working principle of the frequency gear metering pump is: configure a pressure sensor at the outlet of the pump, convert the dynamically measured pressure value into an electrical signal and transmit it to the frequency converter. The frequency converter automatically corrects the pump speed according to the set pressure, so that the pump is always set Working at a fixed pressure point, there is no need to install an overflow valve or manual return valve on the pipeline. The speed of the variable-frequency gear pump is low during the initial work, and the speed of the pump will increase with the wear of the pump. If the pressure does not reach the set value when the pump is working at full speed, the system will automatically alarm, prompting the pump to be repaired or replaced. Pump.



Unique Advantages of frequency gear metering pump

The characteristics of frequency gear metering pumps as follow:

1.higher positive efficiency

2.Good low speed performance

The pump unit with frequency conversion gear metering pump and electric integration is used in the early low-speed working stage, the motor load is small, the node performance is significantly improved, the high power saving rate can reach 60%, and the low speed can also reduce the pump noise. The service life is also greatly extended, and the entire combustion system can be automated and left unattended.



Application of frequency gear metering pump

frequency gear metering pump is especially suitable for fuel transportation and injection occasions in sectors and industries such as petroleum, chemical industry, building materials daily chemical, power, road construction machinery, asphalt mixing station, etc., and is also more suitable for various machine tools, internal combustion engines, air compressors, Lubrication and cooling systems in various mechanical equipment such as refrigerators, generator sets, ships, etc. can also be used in hydraulic transmission systems, etc.



Pump details of frequency gear metering pump

1.Material: structural steel, cast iron, reinforced carbon composite material

2.Sealing: single and double mechanical seal, packing seal

3.Installation: motor installation, foot installation

4.Pressure: 1-70bar

5.Viscosity: up to 10000cps

6.Temperature: -18-200℃ (explain it before selection if the temperature is over 90℃)

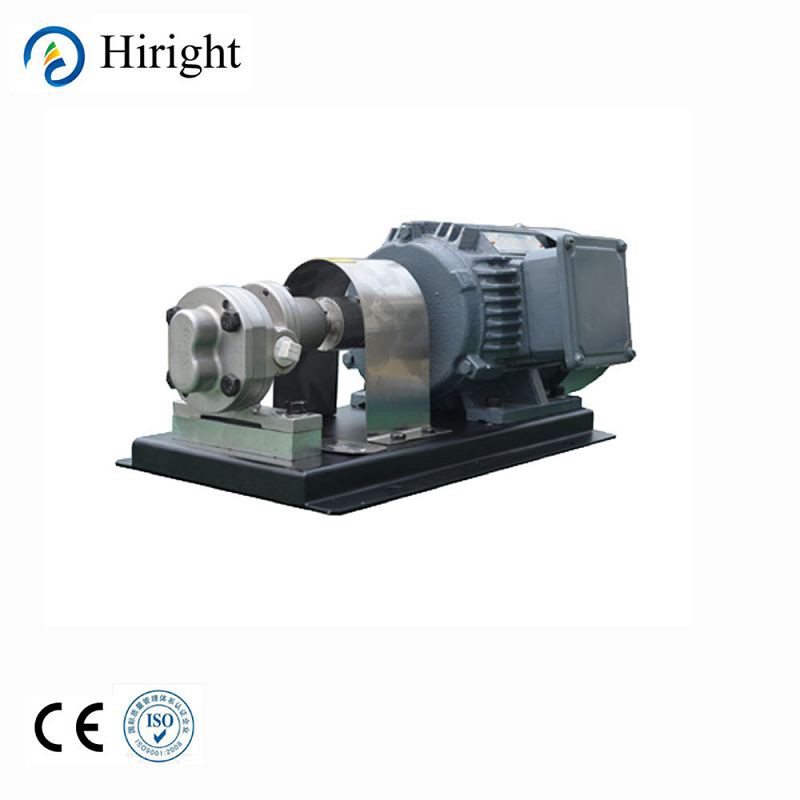

Samples Photos

Performance Parameter Table

type	single turn displacement (cc/rev)	rated flow at max speed (L/min)	max speed (rpm)	inlet/outlet dimension
BL108	108.0	105.0	980	G 1 1/2"
BL160	160.0	115.0	720	Flange DN50
BL200	200.0	144.0	720	Flange DN50
BL240	240.0	172.0	720	Flange DN50
