Main features

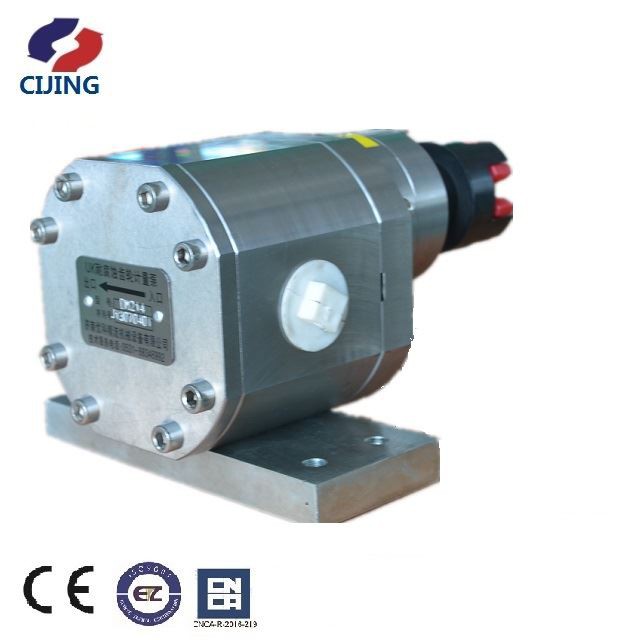

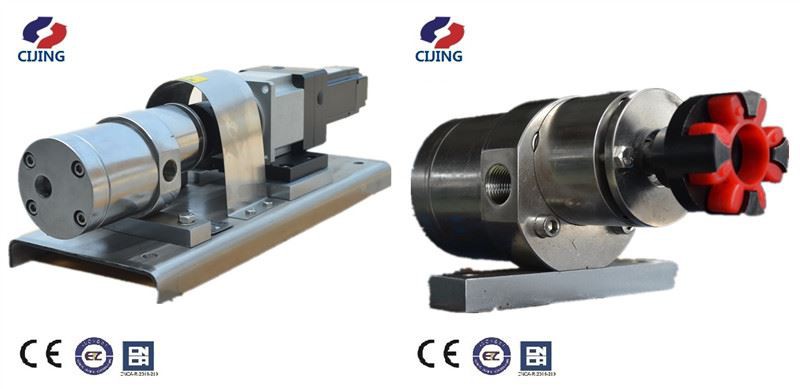

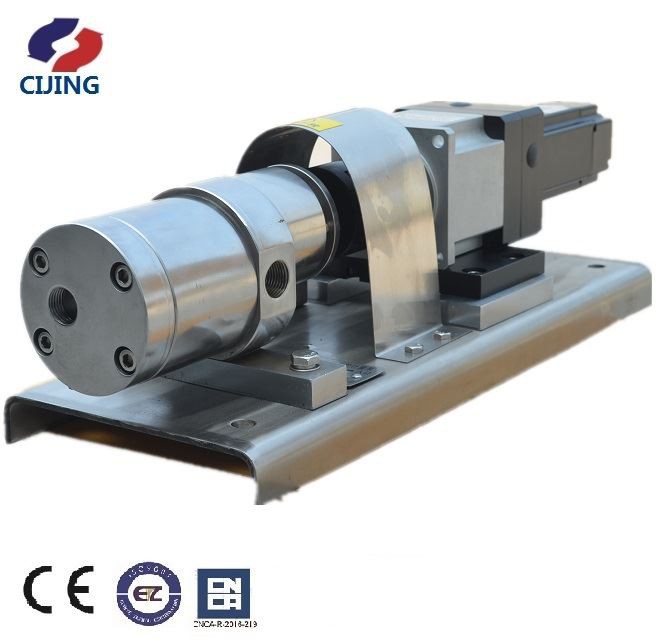

Polyurethane gear metering pump with only two moving parts, high precision metering, pulse-less uniform flow.

Like conventional gear pumps, this pump delivers media through the rotation of a pair of high-precision meshing gears.
The flow rate is strictly proportional to the gear speed, allowing precise adjustment of delivery volume by controlling the speed.

Metering accuracy typically reaches ±0.5%, meeting the critical requirement of "precise proportioning" in polyurethane production.



Pump advantage

1. Accurate measurement.

2. The output is stable without pulsation.

3. Choose the proper seal, otherwise it may leak easily.

4. Easy to disassemble and easy to clean.



the special parameter for the polyurethane gear metering pump

Polyurethane media (especially prepolymers) often contain reactive ingredients such as isocyanates, which can easily react with metals and ordinary rubber.

Key pump components (gears, pump chamber, and seals) are often made of 316L stainless steel, while seals are made of fluororubber (FKM) or perfluoroelastomer (FFKM) to prevent the media from sticking to the pump body and contamination by metal ions.



How to convey the polyurethane

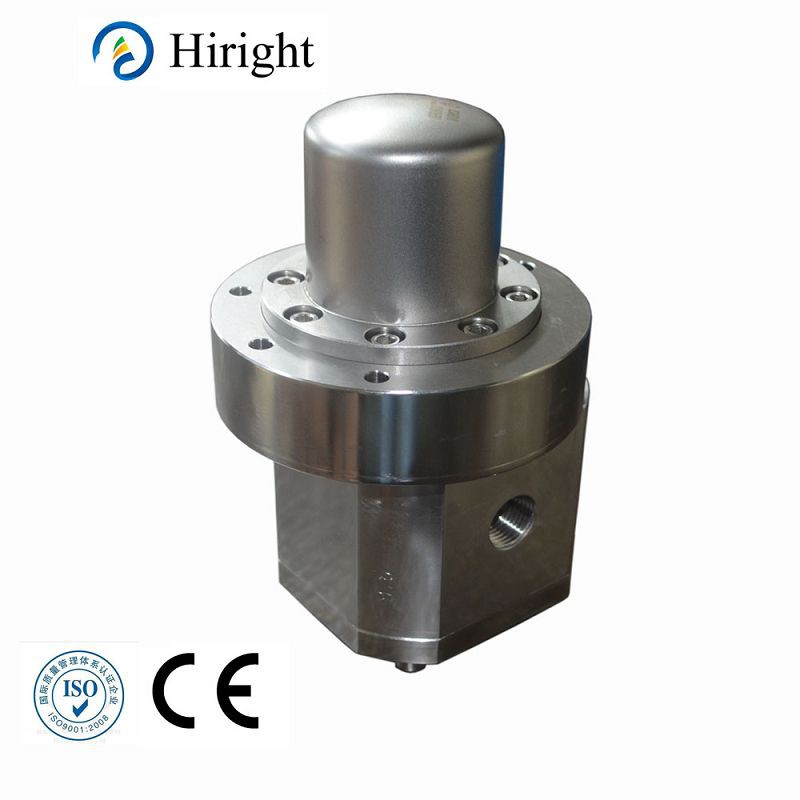

The pumps used in the polyurethane foaming process are high-precision gear metering pumps. Hiright gear metering pumps are capable of pumping high-viscosity fluids under high temperatures and pressures. These high-precision pumps accurately pump a variety of high-viscosity and corrosive liquids, ensuring precise mixing ratios. Our gear metering pumps provide stable, pulsation-free output, ensuring high consistency during the foaming process. Special shaft seals are used within the pumps to prevent crystallization of the material within the seal.

Hiright precision gear metering pumps are available in a variety of specifications and models to meet the needs of most polyurethane production processes, ensuring precise mixing of components under diverse process conditions.



Performance parameter table(middle model)

Application adhesive industry: two components A and B, one-component polyurethane glue, epoxy resin, hot melt adhesive



Type	Single displacement(cc/rev)	Max flow(L/min)	Max speed(RPM)	Inlet/outlet dimension
DS158	1.58	1.5	980	G 1/2"
DS253	2.53	2.4	980	G 1/2"
DS348	3.48	3.4	980	G 1/2"
DS475	4.75	4.6	980	G 1/2"
DS712	7.12	6.9	980	G 1/2"
DS950	9.50	9.3	980	G 1/2"
