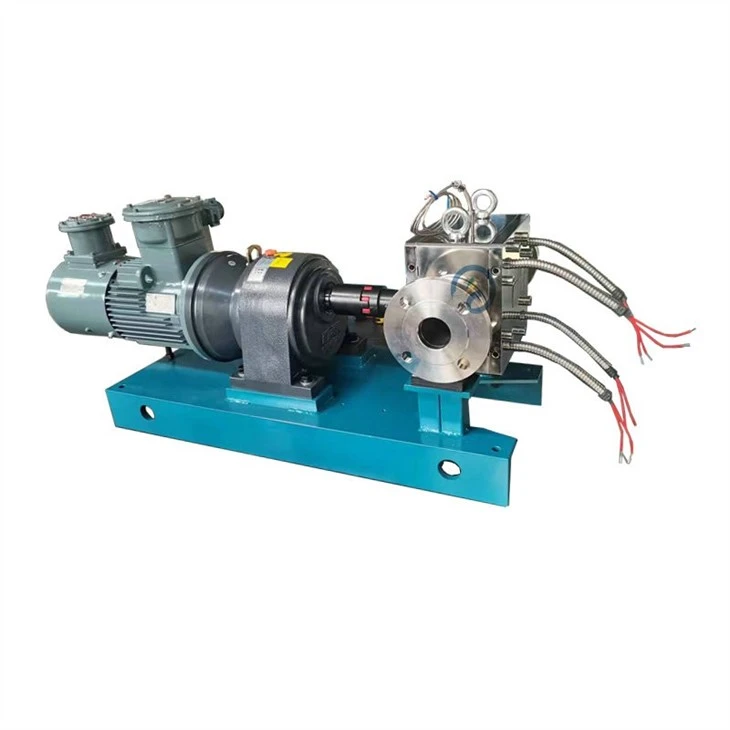

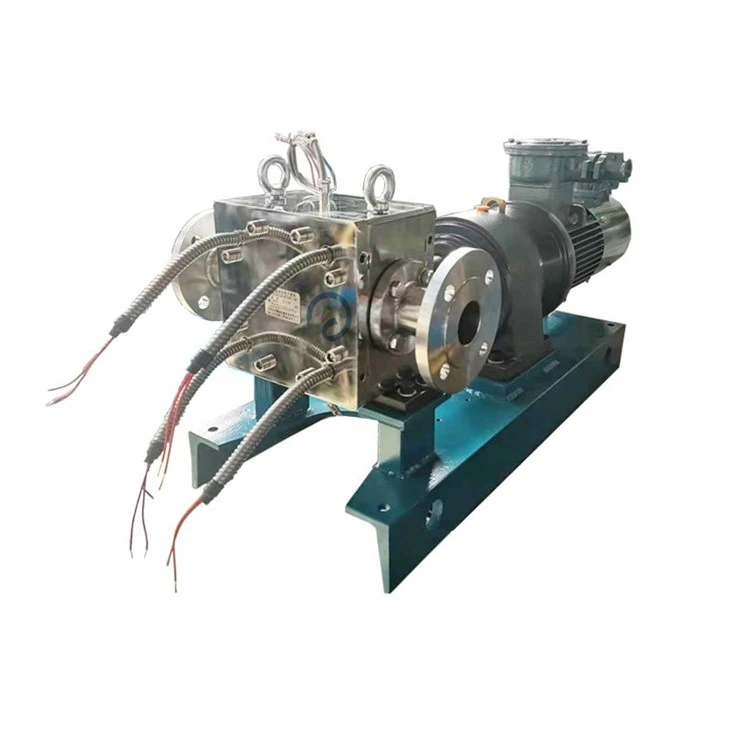

External Gear Metering Pump With Heat System
external gear metering pump with heat system – A Solution for Transporting Viscous Materials at Controlled Temperatures
Fluids come in different forms and properties, from thin, easy-flowing liquids to thick, viscous pastes. When transporting these materials, temperature changes can cause them to thicken, solidify, or crystallize, making them difficult to handle. This is where external gear pumps come into play. These pumps are designed to maintain a specific temperature so that the material remains flowable.
External gear metering pumps with heating systems, when the gears mesh, they move the fluid from the inlet to the outlet. The pumps are usually equipped with a heating or cooling system inside to maintain the required temperature for the fluid to flow.
External gear metering pumps with heating systems are ideal for conveying materials that tend to solidify, crystallize or thicken when subjected to temperature changes. For example, something like melted chocolate may need to be conveyed without solidifying, while asphalt may require temperatures above its crystallization point to remain fluid.
Another advantage of external gear metering pump with heat system is their high level of efficiency.
The tight seal between the gears minimizes slippage, resulting in a high volumetric efficiency. The pumps can also handle high viscosities, which makes them ideal for transferring thick fluids.
|
type |
Single rotation displacement(cc/rev) |
Rated flow rate at maximum speed(L/min) |
Maximum speed (rpm) |
Inlet/outlet dimension |
|
ES158 |
1.58 |
1.5 |
980 |
G1/2" |
|
ES253 |
2.53 |
2.4 |
980 |
G1/2" |
|
ES348 |
3.48 |
3.4 |
980 |
G1/2" |
|
ES475 |
4.75 |
4.6 |
980 |
G1/2" |
|
ES712 |
7.12 |
6.9 |
980 |
G1/2" |
|
ES950 |
9.50 |
9.3 |
980 |
G1/2" |
|
EM142 |
14.2 |
10.2 |
720 |
G3/4" |
|
EM214 |
21.4 |
15.4 |
720 |
G1" |
|
EM320 |
32.0 |
23.0 |
720 |
G1" |
|
EM380 |
48.1 |
20.9 |
550 |
G1 1/4" |
|
EM600 |
60.0 |
33.0 |
550 |
G1 1/2" |
|
EM800 |
80.0 |
38.4 |
480 |
G1 1/2" |
|
EL108 |
108.0 |
51.8 |
480 |
G1 1/2" |
|
EL160 |
160.0 |
64.0 |
400 |
flange φ50 |
|
EL240 |
240.0 |
96.0 |
400 |
flange φ50 |
External gear metering pump with heat system play an essential role in transporting viscous materials at controlled temperatures. They provide a solution for materials that solidify, thicken, or crystallize when exposed to temperature changes, ensuring that they remain in a flowable state throughout the transportation process. The pumps' ability to maintain a constant temperature and handle high viscosities make them a more efficient and cost-effective choice over traditional pumps.
FAQ
Q: Are you trading company or manufacturer?
A: we are manufacturer, we have own factory in China
Q: The size of inlet and outlet can be customized?
A: Yes, can do it.
Q: How long is your delivery time?
A: generally it is 5-10days if the goods are in stock, or it is 15-20days if the goods are not in stock.
It is according to quantity.
Q: How to choose the most suitable model.
A: You can choose in the parameters or you can tell me the working condition: such as pumping liquid, flow rate, pressure, temperature and viscosity.
Q: what is your product MOQ of it?
A: our company is pleasure accept all items 1 pcs order.
