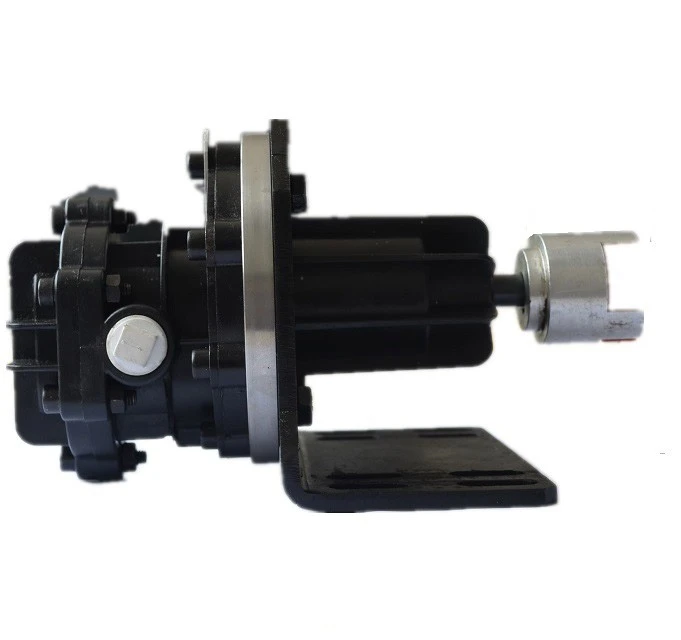

PEEK Material Positive Displacement Pumps
PEEK material gear metering pumps are high-precision metering and conveying equipment developed for highly corrosive conditions. The flow-contacting components, such as the gear shaft and housing, are made of PEEK special engineering plastic. Combined with a precision external gear metering structure, it possesses characteristics such as corrosion resistance, wear resistance, and lightweight design. It perfectly meets the demanding conveying requirements of industries such as chemical, pharmaceutical, lithium battery, semiconductor, and food processing, making it a specialized equipment for precise metering of special media.
Advantage of PEEK material positive displacement pump
1. The application of special materials gives the product excellent corrosion resistance and extends the life of the pump.
2. Simple structure, only two moving parts, no one-way valve
3. Accurate measurement, uniform flow and no pulsation
4. Easy maintenance
Application of PEEK material positive displacement pump
1. Fine Chemical Industry: Various strong acids (hydrochloric acid, sulfuric acid, nitric acid), strong bases (sodium hydroxide, potassium hydroxide), organic solvents (ketones, esters, ethers), chemical intermediates, high-temperature resin slurries, coating additives
2. Pharmaceutical and Biotechnology Industry: Pharmaceutical raw materials, sterile solutions, biological preparations, pharmaceutical solvents, vitamin intermediates, medical excipients
3. Lithium Battery and New Energy Industry: Lithium battery electrolyte (lithium hexafluorophosphate solution), positive and negative electrode slurries, binders, conductive agents, electroplating solutions
4. Food and Beverage / Daily Chemical Industry: Food additives (acidulants, sweeteners, preservatives), flavors and fragrances, daily chemical raw materials (cosmetic essences, laundry detergent concentrates), sauce additives, edible essential oils
|
type |
Single rotation displacement(cc/rev) |
Rated flow rate at maximum speed(L/min) |
Maximum speed (rpm) |
Inlet/outlet dimension |
|
AS190 |
1.90 |
2.5 |
1500 |
G1/2" |
|
AS285 |
2.85 |
4.2 |
1500 |
G1/2" |
|
AS380 |
3.80 |
5.7 |
1500 |
G1/2" |
|
AS570 |
5.7 |
8.5 |
1500 |
G1/2" |
|
AS855 |
8.55 |
12.8 |
1500 |
G1/2" |
|
AM320 |
32.0 |
48.0 |
1500 |
G3/4 |
FAQ
Q: Are you trading company or manufacturer?
A: we are manufacturer, we have own factory in China
Q: The size of inlet and outlet can be customized?
A: Yes, can do it.
