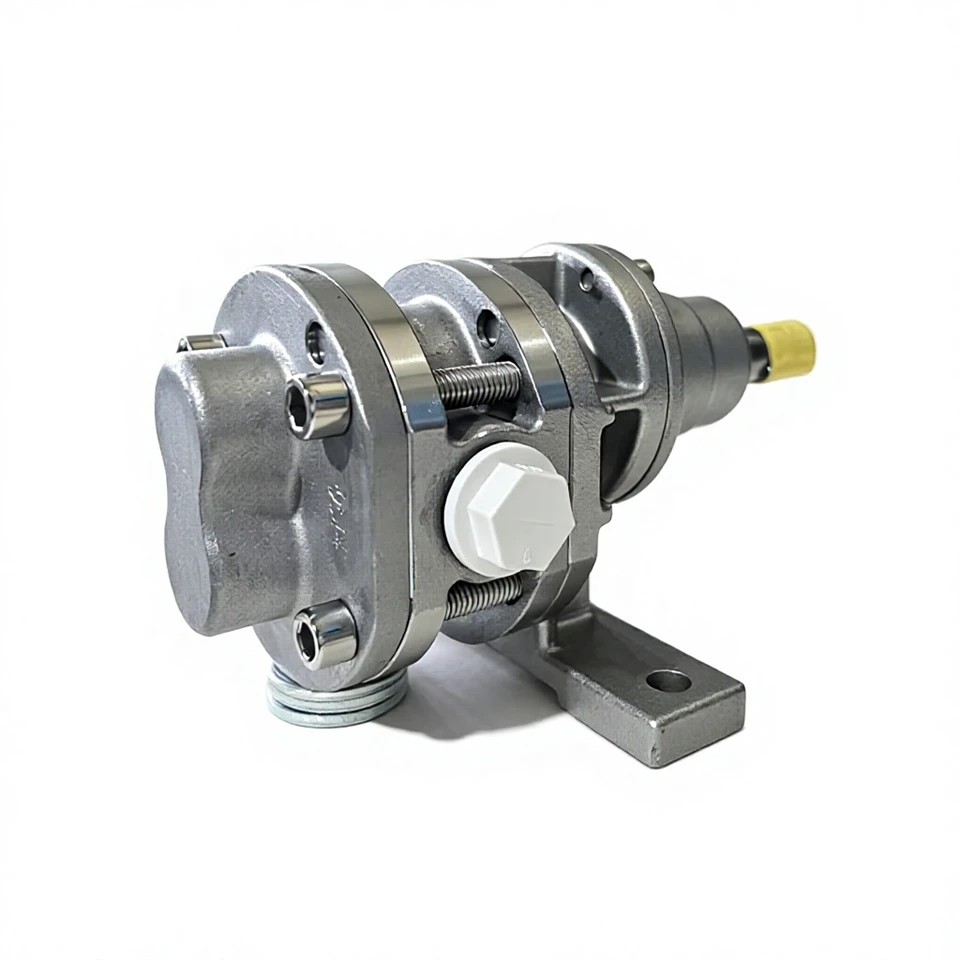

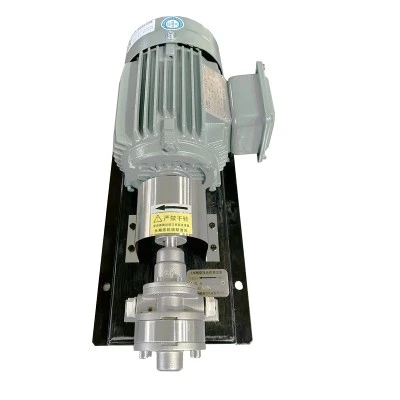

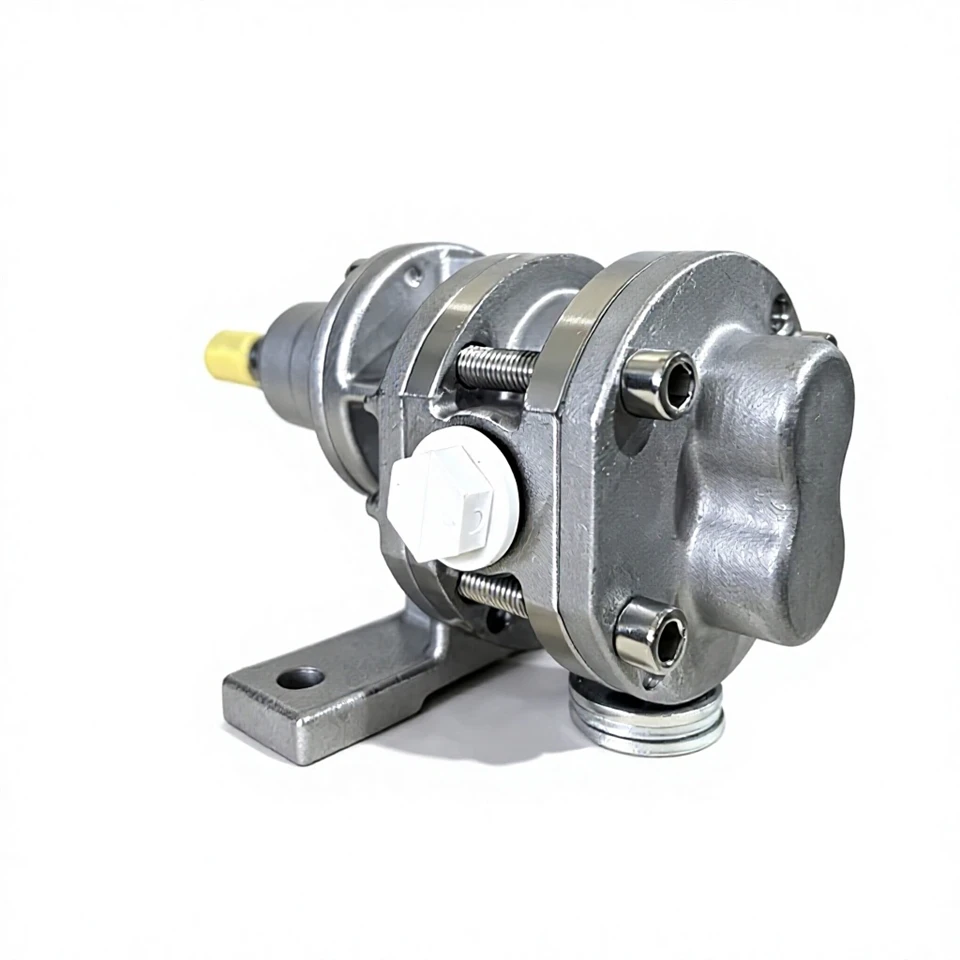

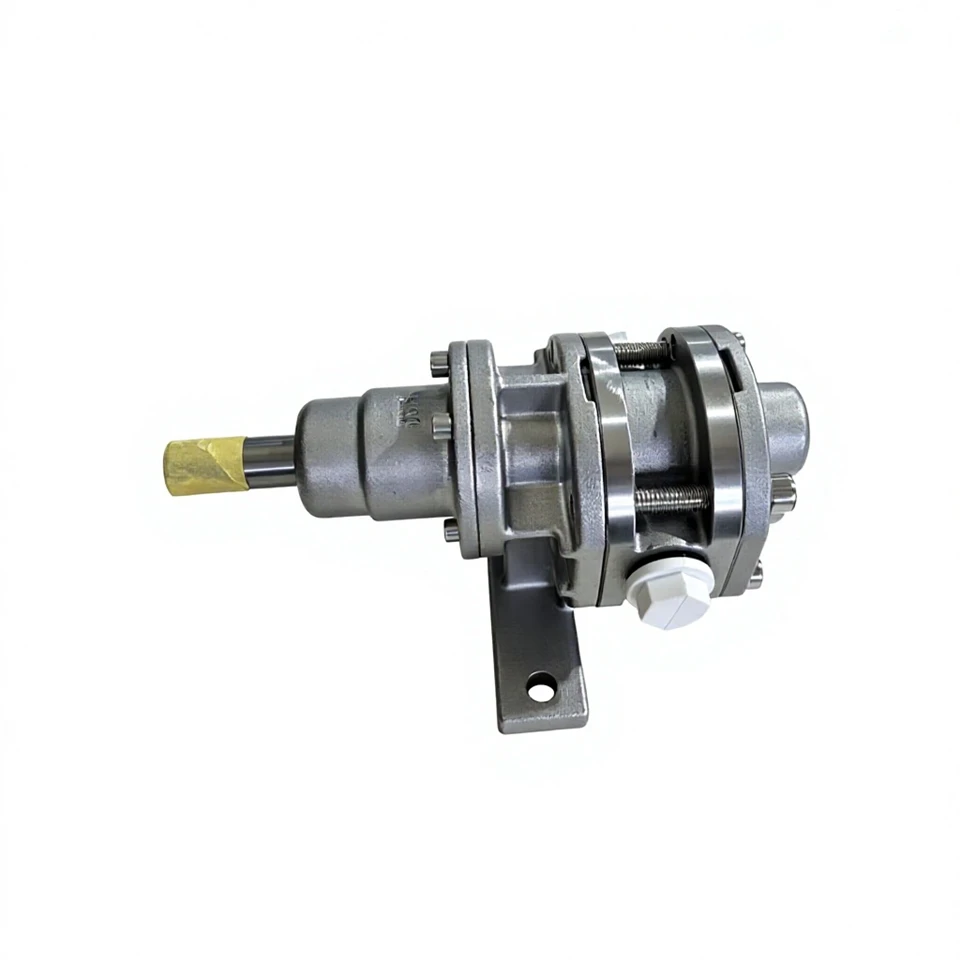

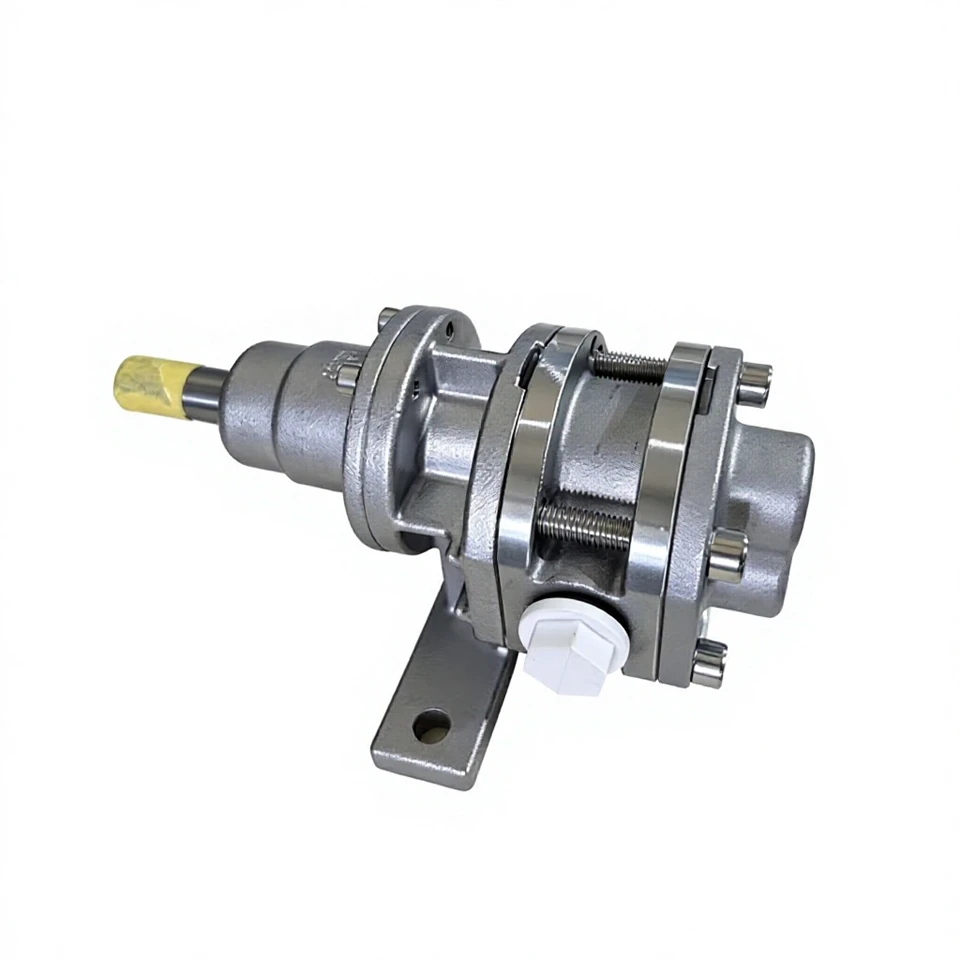

High Precision Gear Metering Pumps

Operating Principle

A pair of high-precision meshing gears operates with tight tolerances within the pump chamber:

1. Inlet side: As the gears disengage, the increasing volume creates negative pressure, drawing in the medium;
2. The medium is trapped between the gear teeth and the pump casing, then conveyed along the casing's inner periphery;
3. Outlet side: As the gears re-mesh, the volume between the teeth decreases, forcibly discharging the medium;
A fixed volume of fluid is discharged per revolution; flow rate can be precisely controlled by adjusting the rotational speed. Minimal internal clearances reduce backflow (internal slip), ensuring metering accuracy.

Key Features

1. High metering accuracy: Flow repeatability ranges from ±0.1% to ±0.5%; volumetric efficiency is 90–98%. When paired with a servo motor for closed-loop control, it offers excellent flow stability and low-pulsation output.
2. Wide viscosity range: Capable of handling low-viscosity solvents as well as high-viscosity resins, asphalt, and adhesives (up to several million cP).
3. Diverse material options: Available in 304/316L stainless steel, Hastelloy C276, PEEK, hardened tool steel, etc., to handle mildly acidic or corrosive media; sealing options include single/double mechanical seals and leak-free magnetic drive configurations.
4. Compact structure: Features fewer components and stable operation; optional heating/insulation jackets allow for handling high-temperature media (such as polyurethane, hot-melt adhesives, and asphalt).

Application

Chemical Industry: Two-component polyurethane casting; epoxy resin, MDI/TDI, and furan resin handling; precise dosing of various additives;
Polymers: Polymer extrusion, melt metering, and coating production lines;
Food & Pharmaceuticals: Precise transfer of sauces, syrups, and pharmaceutical liquid formulations (sanitary-grade versions available);
New Materials: Precise supply of coatings, inks, adhesives, lithium-ion battery slurries, asphalt, and silicone oil;
Others: Dosing of water treatment chemicals and precision laboratory compounding.

FAQ:

Q: What level of precision can be achieved?
A: Steady-state flow repeatability can reach ±0.1%; accuracy depends on the fluid viscosity, pressure fluctuations, and the servo control system.

Q: Is a magnetic seal available?
A: The magnetic drive model features a seal-less design with zero external leakage, making it suitable for toxic or volatile chemical media.
