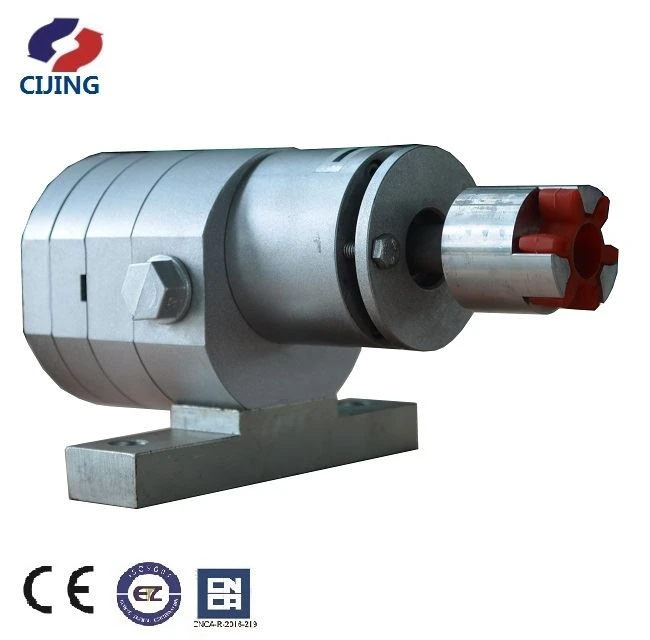

Chemical Metering Pump

This corrosion-resistant precision gear metering pump is specifically engineered for the accurate transfer of highly corrosive and high-viscosity media in the chemical industry. It features an exceptional metering repeatability of 0.1% and a maximum pressure rating of 70 bar, serving as core metering equipment for production lines involving polyurethane foaming, resin proportioning, and isocyanate (MDI/TDI) transfer.
Utilizing a high-precision external gear design, the pump ensures stable positive-displacement output and pulse-free flow. This guarantees consistent mixing ratios and eliminates issues such as raw material waste, color variations in finished products, and defective foam parts.



Main features of chemical metering pump

Chemical metering pump is special pump, especially used in the processing for chemical properties lively, easy to crystallization and liquid with strong ability



Pump advantage of chemical metering pump

(1) With special seal structure, pertinence and reliable sealing

(2) Simple design with only two moving parts.

(3) The design of coronary root reduced material shear in pump and improved the utilization rate of energy consumption



Metering pump for artificial stone curing agent

The artificial stone curing agent, chemical name epoxy methyl ethyl ketone(or MEKP), has a very low viscosity and is corrosive, and in the production process of artificial stone, it also needs to pump a certain pressure, which brings great challenges to the production design of the pump .

The engineers of US not only conducted in-depth and meticulous research on the artificial stone production line, but also carried out systematic analysis and research on the pumps in the industry. After repeated trials, the artificial stone curing agent produced-special gear metering for epoxy methyl ethyl ketone Pump(MEKP pump).

Not only solved from the process, the problem of high pressure and low viscosity of the liquid material in the production process of artificial stone, but also has great benefits for saving expensive epoxy methyl ethyl ketone(MEKP). Not only does it increase the life span, but also reduces production costs.



Pump details of chemical metering pump

1.Material: structure steel, tool steel

2.Sealing: compound seal

3.Installation: motor installation, footing installation

4.Pressure: 1-70bar(depending upon viscosity)

5.Viscosity: up to 100,000cps

6.Temperature: -18-120℃(explain it before selection if the temperature is over 90℃)

Type	single turn displacement (cc/rev)	rated flow at max speed (L/min)	max speed (rpm)	Inlet/outlet dimension
CL108	108.0	105.0	980	G1 1/2"
CL160	160.0	115.0	720	Flange DN50
CL200	200.0	144.0	720	Flange DN50
CL240	240.0	172.0	720	Flange DN50
CL500	500.0	360.0	720	Flange DN50
