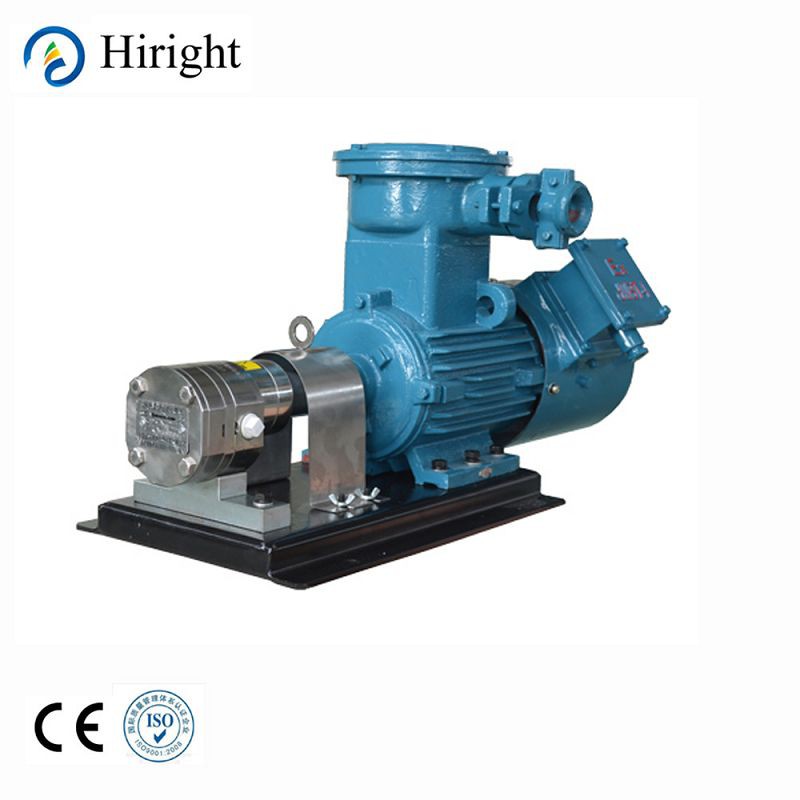

Stainless Steel Metering Pump
Main features of stainless steel gear pump
Stainless steel metering pump is a kind of gear metering pump suitable for medium and low pressure and medium and small flow.
It is mainly used in the occasions where the conveying medium is complex and the food grade requirements are high.
At the same time, due to the use of high-quality and reasonable sealing structure, long-term operation without leakage, it has good reliability and practicality, and long service life.
Unique Advantages of stainless steel gear pump
1. High precision: Under different temperature, pressure and viscosity conditions, it can operate continuous, accurate and stable flow.
2. No pulsation: The unique gear structure design makes the flow transmission without pulsation, eliminating unnecessary buffers and other accessories, making the system simple and reducing the cost.
3. Performance: The pump head has a simple structure, and the moving parts are hardened. Different materials can achieve wear resistance, corrosion resistance and shear resistance of different media to ensure the long-term service life.
Pump information of stainless steel gear pump
Material: 304,316,316L,440C, Alloy stainless steel
Pressure: 1-70bar(depending upon viscosity)
Sealing: single mechanical seal, double mechanical seal, and packing seal
Installation: motor installation, foot installation
Motor: 220/380/415V ordinary motor, frequency motor and ex-proof motor
Precautions of stainless steel gear pump
1. Keep the pump in one line.
2. When the fluid enters the inlet, try not to dry and idle.
3. The inlet and outlet of the pump should not be reversed.
Performance parameter table
|
Type |
Single displacement(cc/rev) |
Max flow(L/min) |
Max speed(RPM) |
Inlet/outlet dimension |
|
CS110 |
1.10 |
1.6 |
1500 |
G3/8" |
|
CS158 |
1.58 |
2.3 |
1500 |
G1/2" |
|
CS253 |
2.53 |
3.7 |
1500 |
G1/2" |
|
CS348 |
3.48 |
5.2 |
1500 |
G1/2" |
|
CS475 |
4.75 |
7.0 |
1500 |
G1/2" |
|
CS712 |
7.12 |
10.6 |
1500 |
G1/2" |
|
CS950 |
9.50 |
14.0 |
1500 |
G1/2" |
