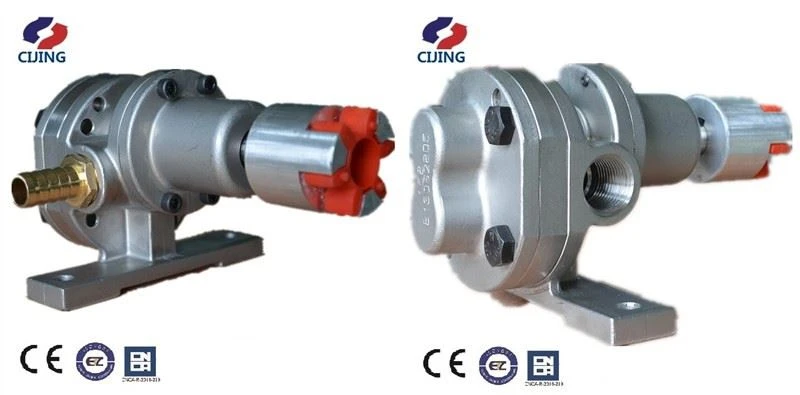

Stainless Steel Gear Pump
Main features of stainless steel gear pump
Adopt the stainless steel material to meet the high standards of material and food industry.
With the especially solid structure, UK gear pump has long usability and excellent reliability.
Application of corrosion resistant material, make the series gear pump has a wide range applications, from the highly sensitive chemicals to the corrosion of strong acid.
Pump feature of stainless steel gear pump
Ensure accurate flow, no pulsation and repeatability
The design is unique, and the motor and the metering pump are connected by a kneading drive, which eliminates the influence of the centering error between the motor and the metering pump on the metering accuracy.
Matching motor type: 380V ordinary motor, frequency conversion motor, explosion-proof motor
Pump information of stainless steel gear pump
Material: 304,316,316L,440C, Alloy stainless steel
Pressure: 1-70bar(depending upon viscosity)
Sealing: single mechanical seal, double mechanical seal, and packing seal
Installation: motor installation, foot installation
Performance parameter table (Middel model)
|
Type |
Single displacement(cc/rev) |
Max flow(L/min) |
Max speed(RPM) |
Inlet/outlet dimension |
|
CM142 |
14.2 |
21.0 |
1500 |
G1/2" |
|
CM214 |
21.4 |
32.0 |
1500 |
G3/4" |
|
CM320 |
32.0 |
48.0 |
1500 |
G1" |
|
CM481 |
48.1 |
47.0 |
980 |
G1" |
|
CM600 |
60.0 |
58.0 |
980 |
G1 1/4" |
|
CM712 |
71.2 |
69.8 |
980 |
G1 1/4" |
|
CM800 |
80.0 |
78.0 |
980 |
G1 1/4" |
Typical application of stainless steel gear pump
1.Food industry: deionized water, sodium hydroxide, vegetable oil, grease, phospholipids, protein powder, spices.
2.Daily chemical industry: alkyl benzene, olefins and alcohol, alkyl sulfonate, alkenyl sulphonate, emulsion, essence.
3.The tobacco industry: glue, essence.
4.Textile printing and dyeing industry: indigo blue and sulphur black, hydrogen peroxide, sodium hydroxide, softening agent, colorant, dye.
5.Fiber industry: polymer, pigment, resin, oil, DMAC, DMA
Casting industry: organic ester curing agent, phenolic resin, methenamine
FAQ
Q: Are you trading company or manufacturer?
A: we are manufacturer, we have own factory in China
Q: The size of inlet and outlet can be customized?
A: Yes, can do it.
Q: How long is your delivery time?
A: generally it is 5-10days if the goods are in stock, or it is 15-20days if the goods are not in stock.
It is according to quantity.
Q: How to choose the most suitable model.
A: You can choose in the parameters or you can tell me the working condition: such as pumping liquid, flow rate, pressure, temperature and viscosity.
Q: what is your product MOQ of it?
A: our company is pleasure accept all items 1 pcs order.
