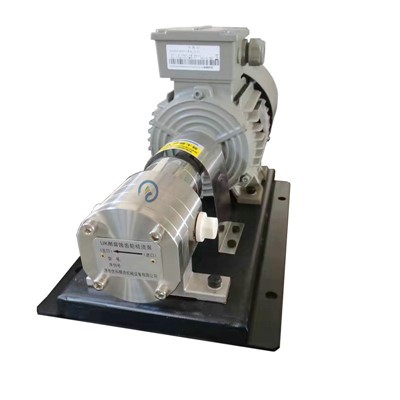

Stainless Steel Gear Pump With Magnetic Coupling
Why use the stainless steel material
Adopt the stainless steel material to meet the high standards of chemical and food industry.
What is the magnetic coupling
Utilizes the magnetic field effect of magnetic materials to achieve a tight-fitting design.
Magnetic coupling refers to the use of the magnetic field effect of magnetic materials to attract the compensating ring component and the non-compensating ring component to each other, so as to achieve a close fit between the friction surfaces of the compensating ring and the non-compensating ring.
Advantage of magnetic coupling
Compared with ordinary elastically loaded face seals, the main advantages of magnetic face seals are that they have fewer structural components, are compact, and are easy to install. Using magnetic force instead of the elastic force of the elastic element overcomes the problem of large changes in contact load caused by manufacturing and installation errors and the influence of axial displacement during work. Seal interface contact load. It can be designed to be smaller (only 25% to 50% of ordinary spring-loaded face seals) and evenly distributed. Therefore, the magnetic end seal device has high working capacity (temperature, pressure difference), reliable operation, low wear and long life.
Application of stainless steel gear pump with magnetic coupling
Conveying environmentally harmful, toxic, and stinky substances
Safe and leak-free
|
type |
Single rotation displacement(cc/rev) |
Rated flow rate at maximum speed(L/min) |
Maximum speed (rpm) |
Inlet/outlet dimension |
|
CS55 |
0.55 |
0.8 |
1500 |
G1/4" |
|
CS79 |
0.79 |
1.1 |
1500 |
G3/8" |
|
CS110 |
1.10 |
1.6 |
1500 |
G3/8" |
|
CS158 |
1.58 |
2.3 |
1500 |
G1/2" |
|
CS253 |
2.53 |
3.7 |
1500 |
G1/2" |
|
CS348 |
3.48 |
5.2 |
1500 |
G1/2" |
|
CS475 |
4.75 |
7.0 |
1500 |
G1/2" |
|
CS712 |
7.12 |
10.6 |
1500 |
G1/2" |
|
CS950 |
9.50 |
14.0 |
1500 |
G1/2" |
|
CM142 |
14.2 |
21.0 |
1500 |
G1/2" |
|
CM214 |
21.4 |
32.0 |
1500 |
G3/4'' |
|
CM320 |
32.0 |
48.0 |
1500 |
G1" |
|
CM481 |
48.1 |
47.0 |
980 |
G1" |
|
CM600 |
60.0 |
58.0 |
980 |
G1 1/4" |
|
CM800 |
80.0 |
78.0 |
980 |
G1 1/4" |
|
CL108 |
108.0 |
105.0 |
980 |
G1 1/2" |
|
CL160 |
160.0 |
115.0 |
720 |
flange 50 |
|
CL240 |
240.0 |
172.0 |
720 |
flange 50 |
