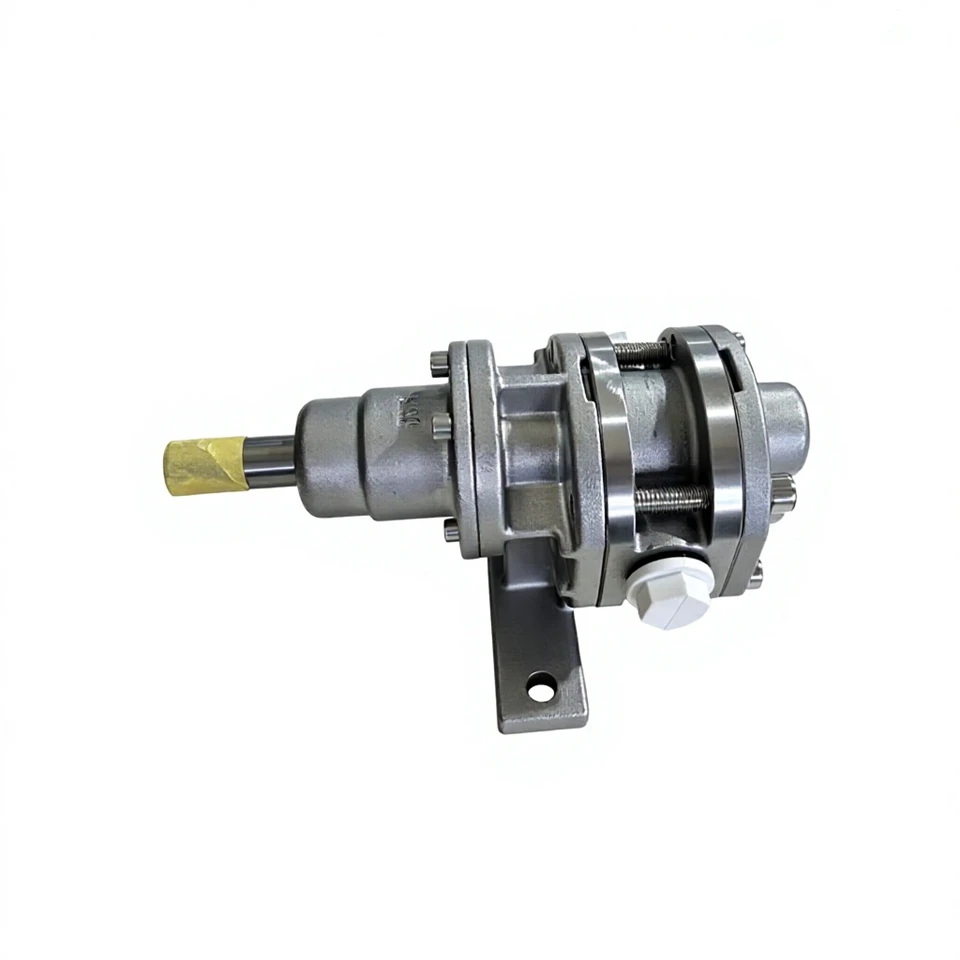

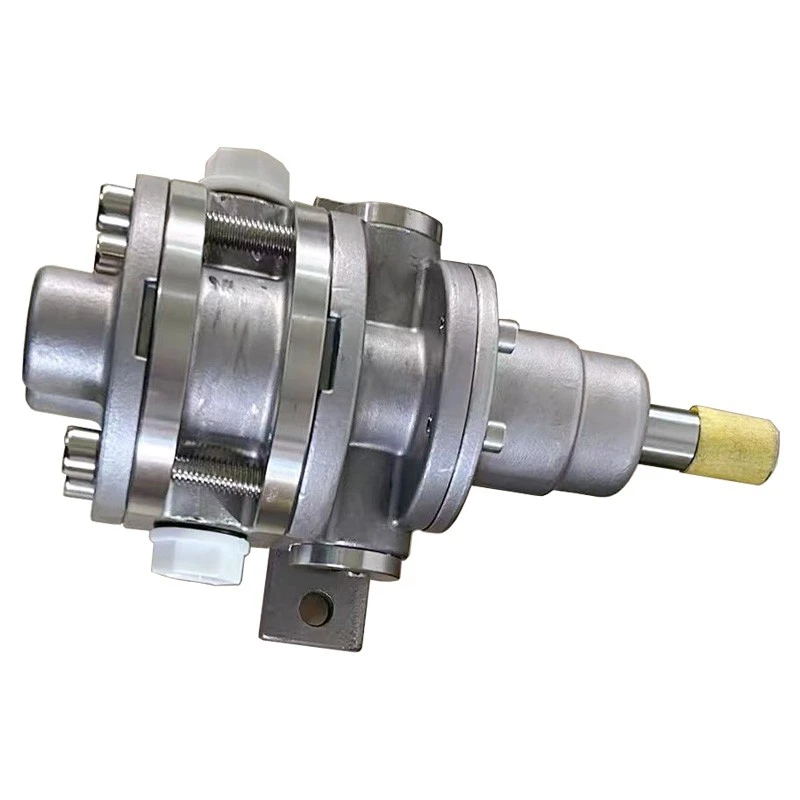

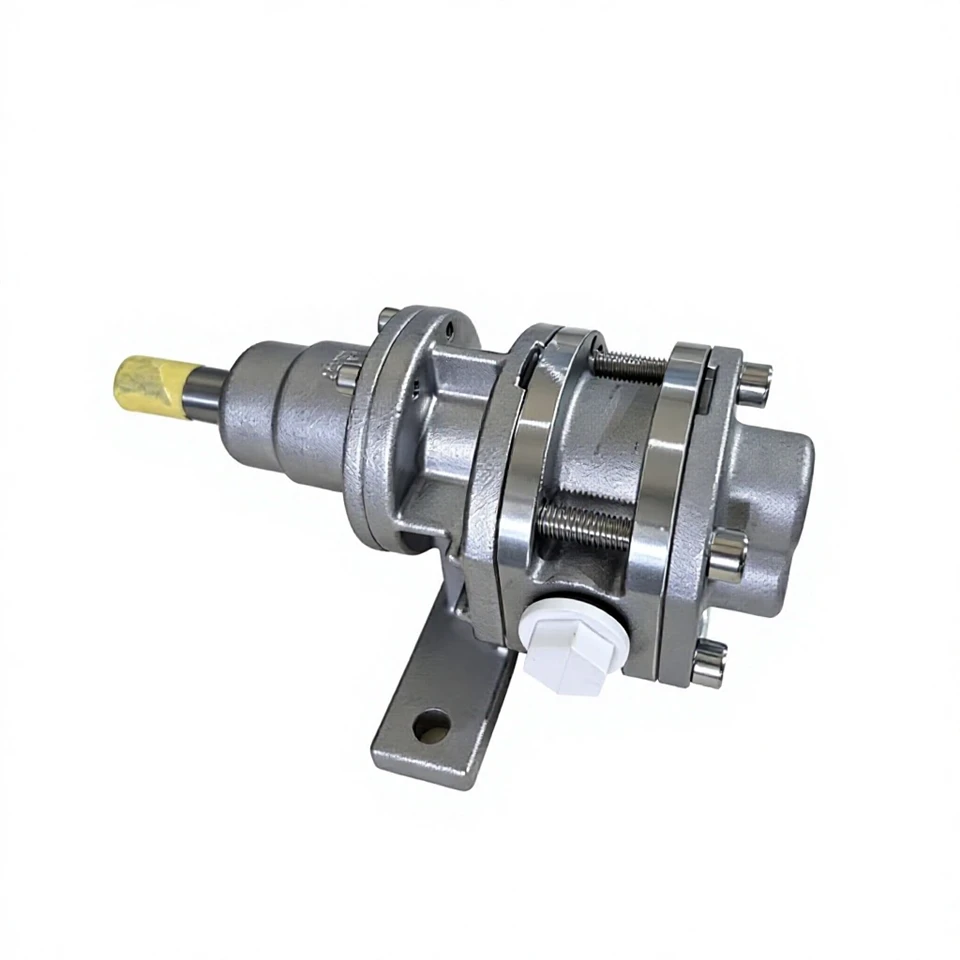

Isocyanate Stainless Steel Gear Pumps

Isocyanate gear metering pumps: precision positive-displacement gear metering pumps designed specifically for moisture-sensitive isocyanates such as MDI, TDI, and polymeric MDI.

Operating Principle

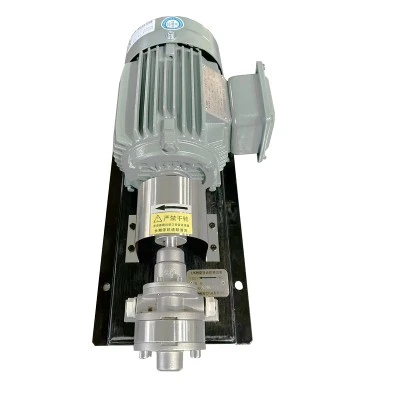

This is a positive-displacement gear metering pump. As the gears mesh and rotate, the fluid is carried within the gear tooth spaces from the inlet to the outlet. The flow rate is strictly proportional to the rotational speed; a servo motor with closed-loop speed control is used to precisely regulate the output of the isocyanate, which is then proportioned with the polyol component.
External-gear designs offer a broader displacement range, making them well-suited for applications requiring low to medium flow rates.

Product Advantages

1. High metering precision and excellent flow linearity; ensures stable mixing ratios for two-component PU foaming and casting, resulting in consistent foam density and a low rejection rate.
2. Wetted parts made of 316L stainless steel provide resistance to chemical corrosion from isocyanates; seals made of PTFE/FFKM offer resistance to swelling caused by the processed media.
3. Modular design facilitates easy disassembly, cleaning, and maintenance; capable of continuous, long-term operation (24 hours a day).

Typical Applications

1. Polyurethane Industry: Rigid and flexible PU foams, elastomers, PU casting, foam insulation panels, automotive PU seals, rubber rollers, two-component PU resin dispensing, and precision metering/feeding of MDI/TDI.
2. Coatings and Adhesives Industry: Metered delivery of isocyanate curing agents for two-component PU adhesives, polyurethane sealants, and waterproof coatings.
3. Composite Materials and Engineered Wood/Panel Industry: Precise proportioning of isocyanate components in continuous production lines.

FAQ:

Q1：What media can this pump handle?
A: Designed for MDI, polymeric MDI, TDI and other isocyanates for PU system. Must keep system dry with nitrogen blanketing.

Q2：Why magnetic drive is mandatory for isocyanate?
A: Isocyanate reacts with moisture in air to form solid polyurea, causing pump jam. Magnetic coupling eliminates dynamic shaft seal, zero leakage & prevents moisture ingress.

Q3：Do we need heating jacket?
A: Yes for MDI. MDI tends to crystallize at ambient temperature. Heating jacket maintains constant working temperature to keep stable viscosity.

Performance Parameter Table
