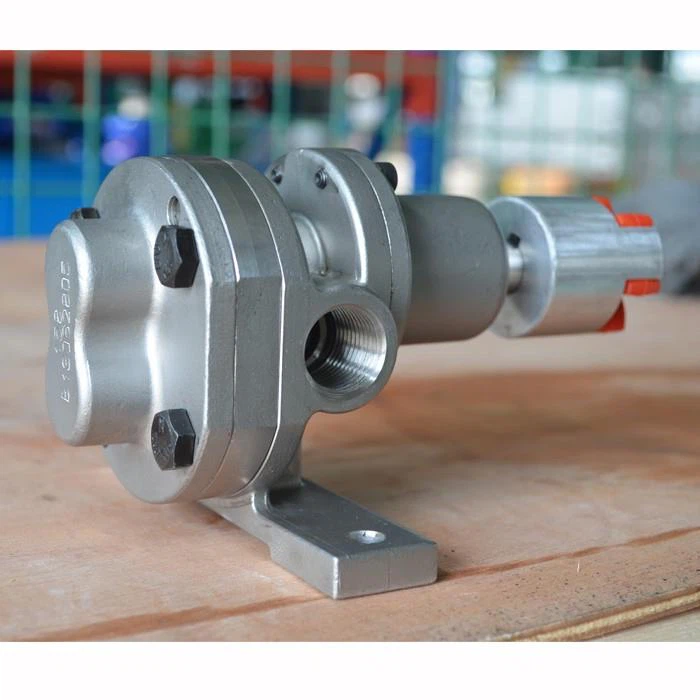

Gear Metering Pump
Product Description
Small volume, large flow, suitable for conveying liquid, or corrosive fluid medium in chemical industry, can also transport food fluid medium with hygienic level requirements in food service conditions.
Advantage
1.Food production and transmission
2.Flat water tower,increase the pressure
3.Not enough hydrulic pressure of water heater
4.Increase the pressure Cooling circulation of industry equipment
<img src="/Content/upload/2019463346/201906241625333132315.jpg" alt="Gear Metering Pump/>
Technical Details
| Material | Structural steel and cast iron |
Sealing | Single and double mechanical seal, packing seal |
Installation | Motor installation |
Pressure | 1-70 bar (depending upon viscosity) |
Viscosity | Up to 10000Cps |
Temperature | -18-200℃ (explain it before selection if the temperature is over 90℃) |
Packing & Delivery
1.Standard export carton/plywood case or to customer's request.
2.Usually shipped by air.
3.We do our best to ship your order within 1 week after receiving your payment.
Selection table
| Type | Single rotation displacement(cc/rev) | Rated flow rate at Maximum speed(L/min) | Maximum speed | Inlet/outlet dimension |
BS55 | 0.55 | 0.8 | 1500 | G1/4” |
BS79 | 0.79 | 1.1 | 1500 | G3/8” |
BS110 | 1.10 | 1.6 | 1500 | G3/8” |
BS158 | 1.58 | 2.3 | 1500 | G1/2” |
BS253 | 2.53 | 3.7 | 1500 | G1/2” |
BS348 | 3.48 | 5.2 | 1500 | G1/2” |
BS475 | 4.75 | 7.0 | 1500 | G1/2” |
BS712 | 7.12 | 10.6 | 1500 | G1/2” |
BS950 | 9.50 | 14.0 | 1500 | G1/2” |
BM142 | 14.2 | 21.0 | 1500 | G1/2” |
BM214 | 21.4 | 32.0 | 1500 | G3/4’’ |
BM320 | 32.0 | 48.0 | 1500 | G1” |
BM481 | 48.1 | 47.0 | 980 | G1” |
BM600 | 60.0 | 58.0 | 980 | G1 1/4” |
BM800 | 80.0 | 78.0 | 980 | G1 1/4” |
BM108 | 108.0 | 105.0 | 980 | G1 1/2” |
BM160 | 160.0 | 115.0 | 720 | φ50 |
BM240 | 240.0 | 172.0 | 720 | φ50 |
Note: The above parameters are measured when the pressure is 0 bar.
Product Line
Test Line
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock, or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q:How can I choose the most suitable pump?
A: Please tell me your detailed flow rate, medium, temperature, viscosity, pressure and so on, then I will match the most appropriate pump for you, or you can choose the exact model in the product manual, If you don’t know the details for the pump, tell us the usage, must suitable model will be recommended.
Q: How long is your pump lifetime?
A: Pump lifetime mainly depends on motor lifetime, we have DC brush, brushless, coreless brushless motor For your choice, the pump warranty is 12 months.
