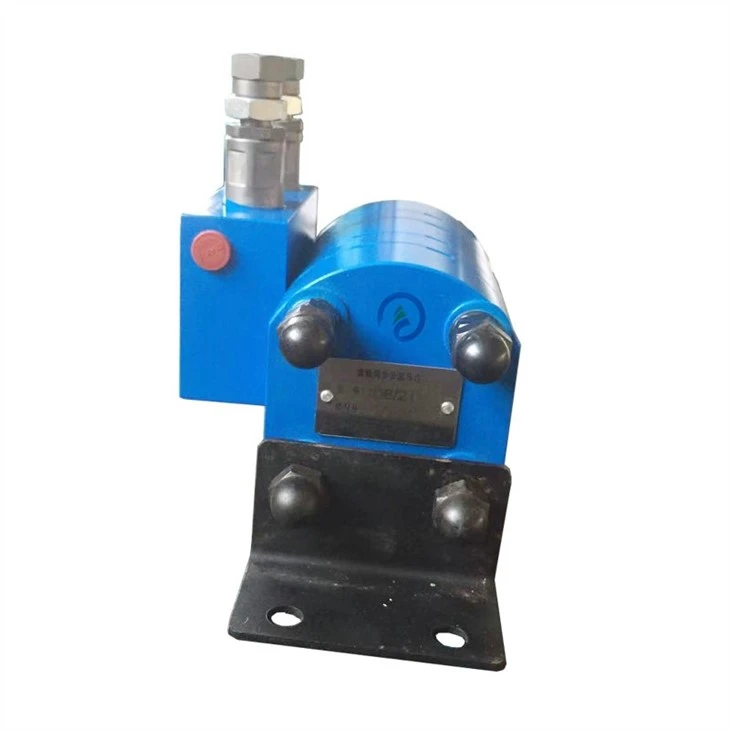

Cast Iron Gear Flow Divider

The cast-iron synchronous flow divider (also known as a gear-type synchronous flow divider) is a specialized mechanical synchronization component for heavy-duty hydraulic systems. It features a robust, single-piece ductile iron housing and internally linked gears on a rigid common shaft. Utilizing a purely mechanical, forced-synchronization mechanism, it precisely divides a single hydraulic flow into multiple equal-ratio streams to drive multiple cylinders or motors in synchronized lifting or advancing operations. It ensures stable and reliable synchronization without the need for electronic control compensation.
Available in standard 2, 4, and 6-circuit configurations-with customization options for up to 12 circuits-it is designed to withstand the harsh, heavy-duty conditions found in construction machinery, lifting equipment, and the mining and metallurgical industries, including high pressures, heavy shock loads, and environments with dust and oil contamination. It serves as an essential core component for heavy-duty synchronization that cannot be replaced by aluminum alloy flow dividers.

Application of cast iron gear flow divider

1. As a flow balancing device, operate multiple cylinders or motors simultaneously

2. As a flow distribution device, the output flow of the pump is distributed according to the system requirements.

3. As a pressure boosting device, the pressure of a certain output port of the divderter exceed the output pressure of the pump.



   Cast iron gear flow divider safety information and usage advice

   1. Use bolts to fix the diverter feet. The diverter can be installed in any way. Before installing the oil pipe, each oil port should be installed with an O-ring or a combination seal. Please use clean hydraulic pipes and pipe joints.
   2. Before starting the power supply, make sure that the inside of the diverter is full of oil to avoid dry grinding due to lack of oil.
   3. Check whether the pipes and joints are safe.
   4. The maximum working pressure of the system must be less than the rated pressure of all components in the system, including the pressure divider.



4. FAQ

   Q: Are you trading company or manufacturer?

   A: we are manufacturer, we have own factory in China

5.



   Q: The size of inlet and outlet can be customized?

   A: Yes, can do it.

6.



   Q: How long is your delivery time?

   A: generally it is 5-10days if the goods are in stock, or it is 15-20days if the goods are not in stock.

   It is according to quantity.
