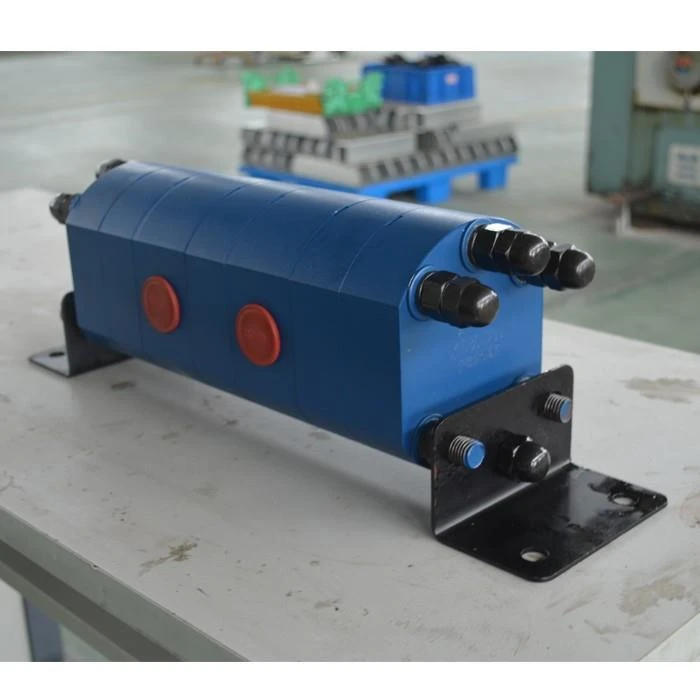

Synchronous Hydraulic Shunt Valve

Product Description
1. High division accuracy
2. A very wide range of division ratios is available
3. The inlet flow can be divided into as many as four portions
4. High efficiency
5. Long service life
6. Also suitable for special fluids


Advantages
Two or several gear motors can be combined to flow divider after being connected by coupling. It guarantees synchronous operation and accuracy of power element like cylinder, hydraulic liquid from the pipe is input into the inlet port and the same amount liquid is distributed to the outlet port by the rotation of gears that with same specification.
Obviously, accuracy of flow divider is up to accuracy of gears and relative spare parts.


Technical Details

Typical application

1.Multiple control oil cylinder or motor as a balancing device.

2.As the flow distribution device, distribute the pump output flow according to system requirements.

3.As supercharging device, make one of an outlet pressure of shunt exceeds the output pressure of the pump.

No matter how harsh the application environment is, our products can be perfectly harnessed.

Selection table

Note : 1.Oil inlet and oil outlet can be customized according to user requirements

2.Please contact us if you need more details.
