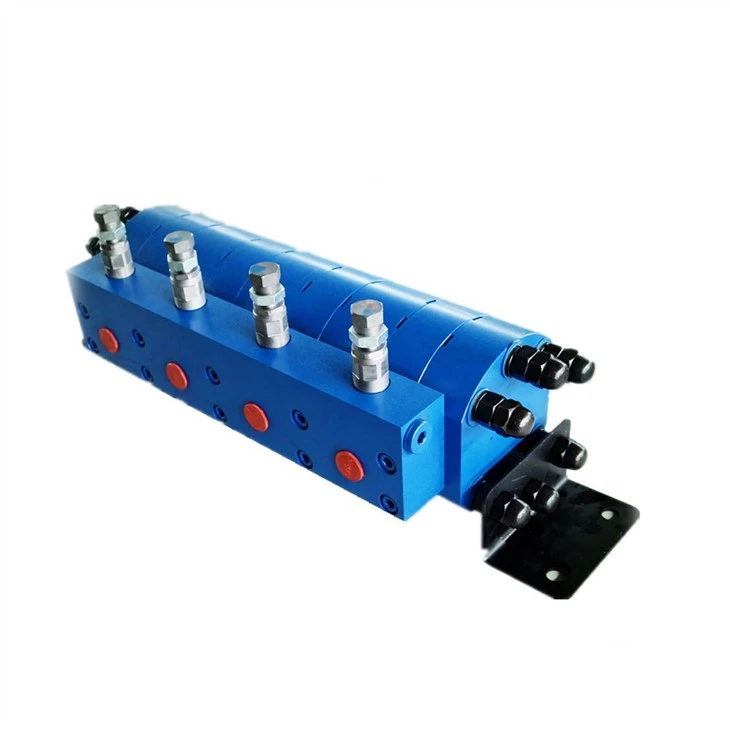

UD Series Synchonous Hydraulic Gear Flow Divider With Valve
UD Series Synchonous Hydraulic Gear Flow Divider With Valve
UD Series Synchonous Hydraulic Gear Flow Divider With Valve
UD Series Synchonous Hydraulic Gear Flow Divider With Valve
UD Series Synchonous Hydraulic Gear Flow Divider With Valve
UD Series Synchonous Hydraulic Gear Flow Divider With Valve
UD Series Synchonous Hydraulic Gear Flow Divider With Valve
UD series synchonous hydraulic gear flow divider with valve, the small single turn displacement is 1.5cc/r, the working pressure is 220bar, the peak pressure is 250bar.
UD Series Synchonous hydraulic gear flow divider with valve model type information
UD1.5/3 T V
UD: meaning the series of gear flow divider
1.5: meaning the single turn displacement
3: meaning the quantity of output
T: meaning the thread connection
V: meaning with the valve
UD Series Synchonous hydraulic gear flow divider with valve performance parameter table
| Type | Single displacement ml/r | Pressurte (bar) | Rotation (r/min) | ||
| work pressure | weak pressure | min | max | ||
| UD1.5 | 1.5 | 220 | 250 | 1250 | 4000 |
| UD2.5 | 2.5 | 220 | 250 | 1200 | 3900 |
| UD3.5 | 3.5 | 220 | 250 | 1200 | 3800 |
| UD4.5 | 4.5 | 220 | 250 | 1150 | 3600 |
| UD6 | 6 | 220 | 250 | 1100 | 3500 |
UD Series Synchonous hydraulic gear flow divider with valve package information
example: UD6/2TV, the package size is 32x27x21cm, the weight is 14kg.
