1 Inlet 4 Outlets Gear Type Flow Divider

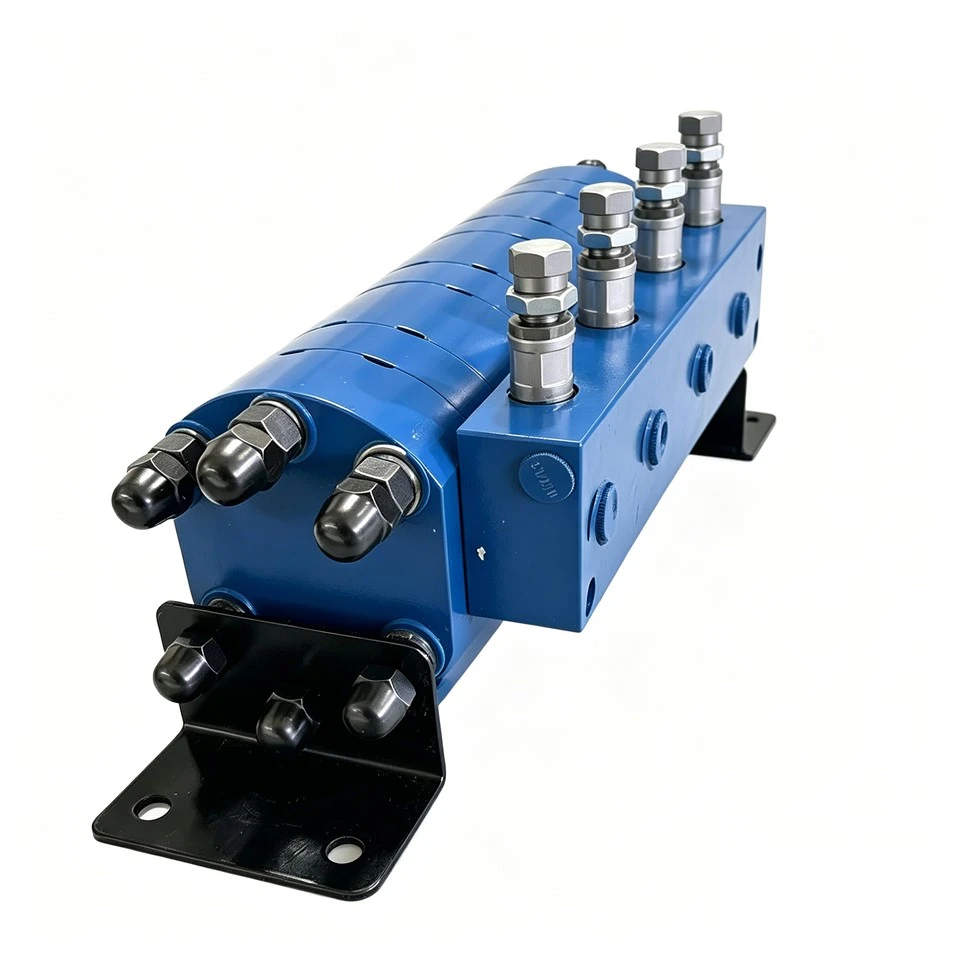

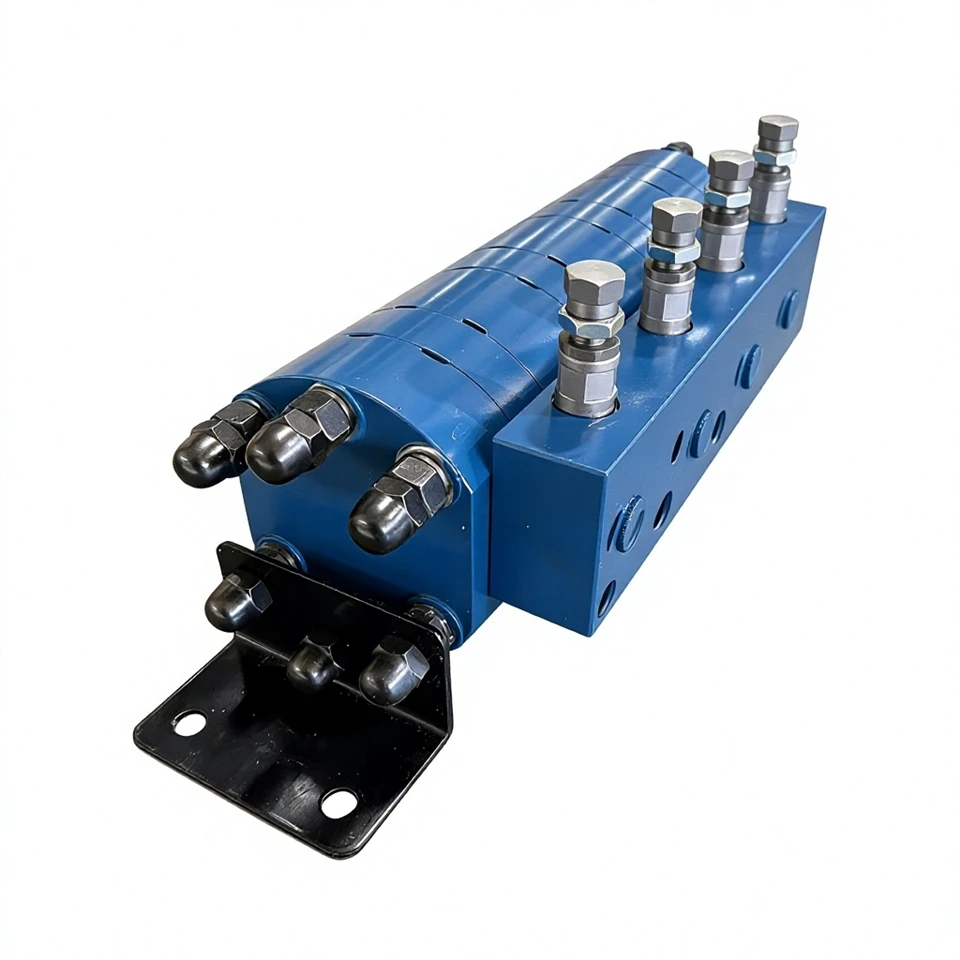

This 1-in/4-out cast-iron gear-type synchronous flow divider (a 4-section hydraulic synchronous flow-dividing motor) features a high-strength cast-iron housing and four internal gear units connected by a rigid common shaft. A single hydraulic oil inlet splits the flow evenly into four output streams, driving four hydraulic cylinders or motors to achieve synchronized extension/retraction or lifting/lowering.

Relying on forced mechanical synchronization, the unit is minimally affected by load pressure differentials. Optional relief valves and make-up check valves can be fitted to each circuit to address issues such as unbalanced loading, overloading, and cavitation. Designed specifically for four-cylinder synchronous applications, it offers heavy-load capacity and vibration resistance, making it suitable for harsh industrial environments.

Features

1. 1-Inlet/4-Outlet Configuration: Features a single oil inlet and four independent outlets, providing standard equal-flow division; customizable for unequal flow distribution to meet specific four-cylinder flow ratio requirements.
2. Heavy-Duty Cast Iron Housing: A solid cast-iron casing offers high rigidity and resistance to shock and vibration; superior to aluminum alloy housings for high-pressure, high-impact, and continuous heavy-duty operations; compatible with mineral-based hydraulic oils and water-glycol fluids.
3. Mechanical Synchronous Operation: Four gear sets share a common drive shaft, achieving synchronization accuracy of ±1.5% to ±2.5%; maintains effective synchronization even with uneven loads across the four cylinders.
4. Optional Integrated Valve Manifold: Each outlet can be fitted with a relief valve and a make-up check valve to prevent cylinder overload/bursting and cavitation during the return stroke, thereby enhancing system stability.
5. High-Pressure Durability: Rated for 280 bar; supports threaded or flanged connections; resistant to fluid contamination; features a compact design, low failure rate, and easy maintenance.

FAQ

Q：Can this 1‑in 4‑out flow divider work when four cylinders have different loads?

A: Yes. Mechanical rigid shaft design keeps good synchronization even under unbalanced loads. Adding relief & check valves is strongly recommended for better real‑world performance.

Q：Are four outputs always equal flow?

A: Standard version is equal flow for four outlets. We can customize different displacement for each section to get unequal flow ratio.

Q：What ports do you offer?

A: Thread ports and flange ports are both optional.
