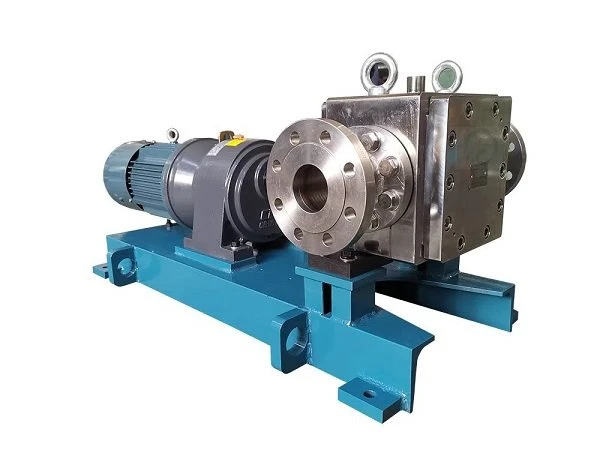

Asphalt Gear Metering Pump

Specifically designed for high-viscosity media-particularly those prone to solidifying at ambient temperatures or requiring temperature-controlled conveyance-this unit integrates jacket heating or electric trace heating onto a stainless steel gear metering pump base.

By maintaining precise temperature control, it ensures the fluidity of the medium while simultaneously guaranteeing high-precision metering.

It is widely utilized in applications involving resins, adhesives, asphalt, paraffin, hot-melt adhesives, honey, greases, and similar substances.

Heating Methods
1. Jacketed Heating
The pump body, front and rear covers, and gear chamber are fitted with a double-layer jacket through which thermal oil or steam circulates; alternatively, internal electric heating elements can be directly embedded.

2.  Electric Trace Heating
Electric heating tapes are wrapped around the outer wall of the pump body and covered with an insulation layer, ensuring more uniform temperature control and simple installation.

Asphalt Gear Metering Pump Characteristic

The main flow parts are equipped with hollow interlayers

Diversity of drive motors

Coupling configuration variety

Diversified coupling configurations

Asphalt Gear Metering Pump Performance Parameter Table

Distinctions from Standard Metering Pumps:
1. Equipped with a heating jacket or electric trace heating; standard pumps lack heating mechanisms.
2. Both seals and bearings feature high-temperature-resistant configurations.
3. Pump body clearances are engineered to accommodate thermal expansion and contraction at high temperatures, ensuring the pump does not seize up under high-temperature conditions.
4. Suitable for highly viscous media and substances that solidify at ambient temperatures.
