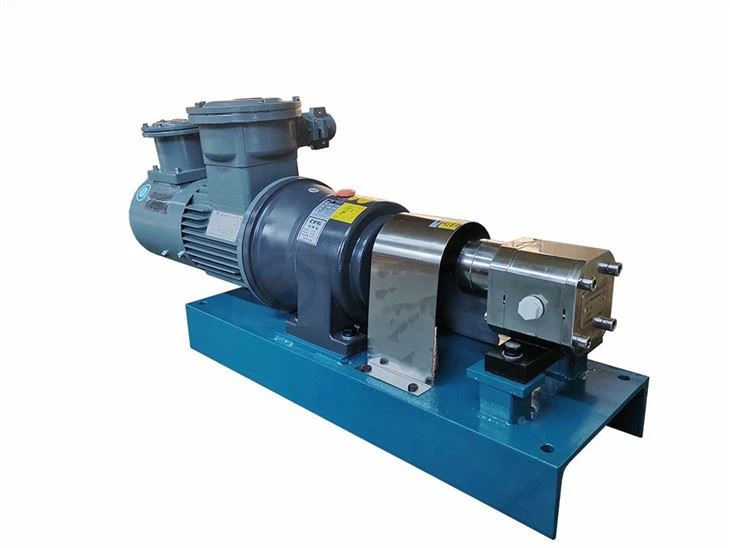

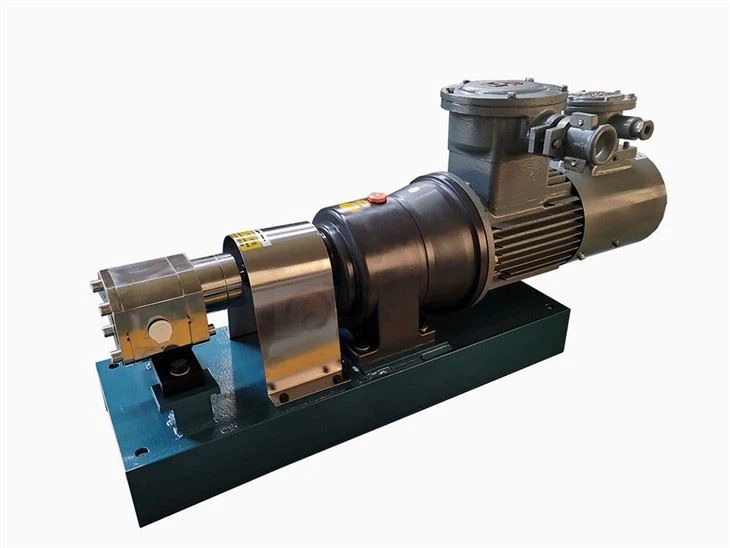

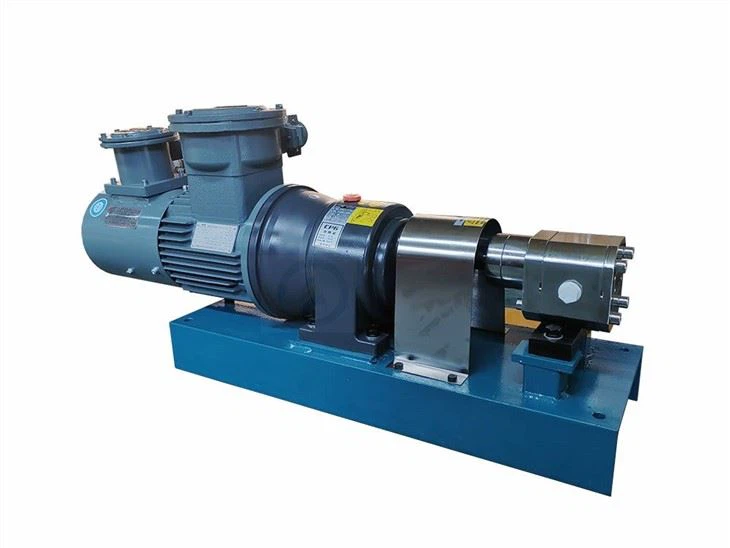

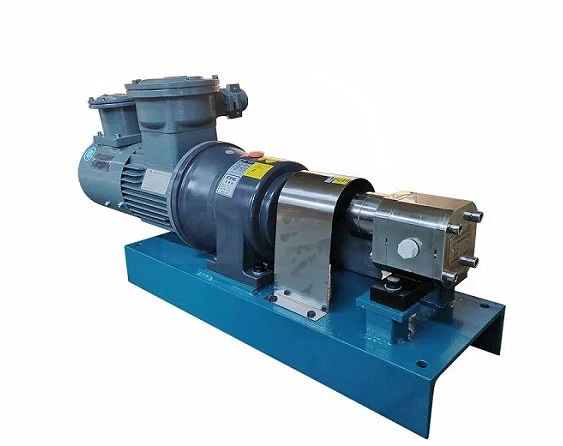

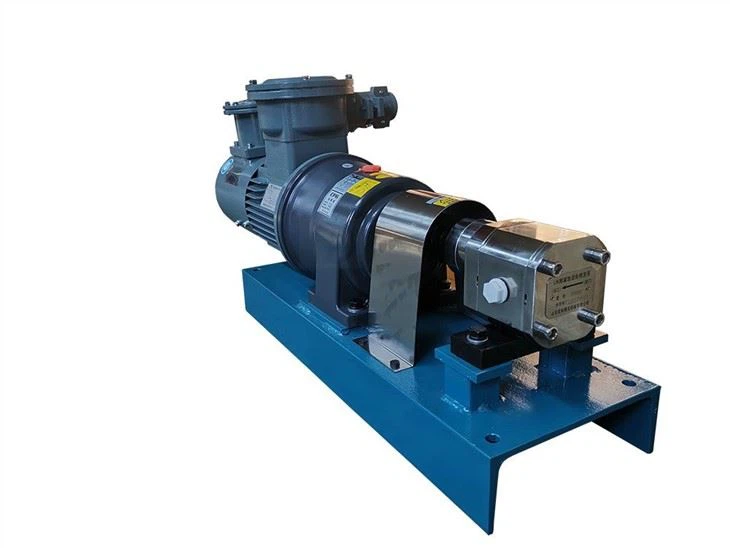

High Viscosity Gear Dosing Pump

High viscosity gear dosing pumps are used to convey high viscosity resin, hot melt adhesive,etc.

It is widely used in the adhesive industry, fiber industry and other industry.

Advantages of high viscosity gear pump

1. Excellent corrosion resistance ability.

2. With the overloading shaft and bearing, the whole machine is durable.

3. Forced lubrication system and automatic lubrication bushing prolong the service life of pump.

4. The design of coronary root reduced material shear in pump and improved the utilization rate of energy consumption.

5. Easy dismounting and maintenance

High viscosity gear dosing pumps can reach 1000000Cps, the pressure is 1-100bar(depending on the viscosity of the material).

Operating temperature at -18℃-280℃(If the temperature exceeds 90℃,please specify when selecting)

Performance Parameter Table

Usage and Maintenance Points

1. Avoid dry running and cavitation: Ensure the pump chamber is full of medium before starting. When starting at low temperatures, reduce the speed of the variable frequency motor to minimize the risk of cavitation.

2. Regularly maintain seals and clearances: Select appropriate seals according to the medium temperature. For example, use FKM fluororubber seals for high-temperature conditions. Regularly check the end face clearance. If the clearance is too large due to wear, adjust or replace parts promptly to prevent further leakage.

3. Control temperature rise: High-viscosity media are prone to viscous shear heat during transportation. The oil temperature must be controlled through the outlet cooling circuit to prevent a sudden drop in medium viscosity from affecting metering accuracy and to protect the seals from high-temperature damage.
