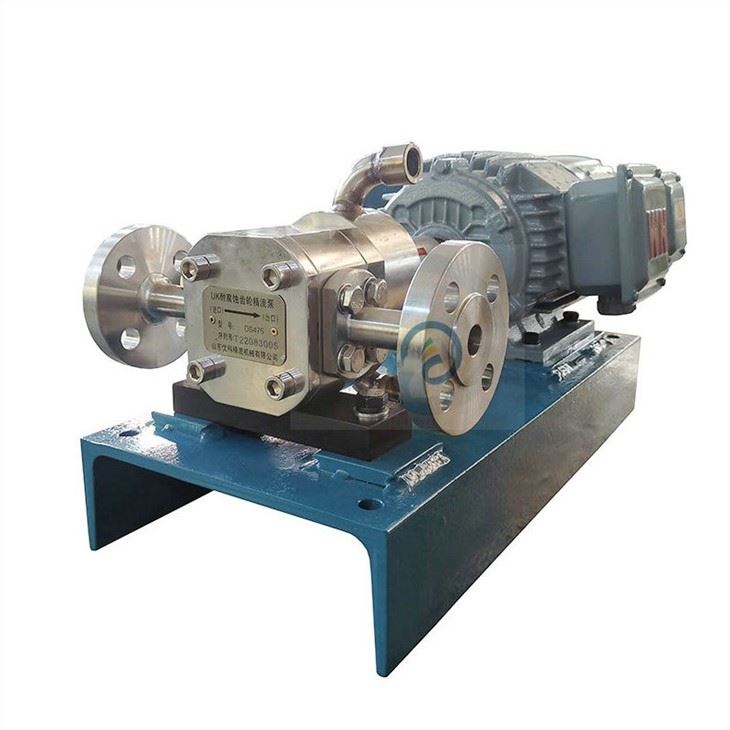

Molecular Distillation Gear Metering Pump
Molecular distillation gear metering pump
The molecular distillation gear metering pump is a high-precision positive displacement pump specifically designed for demanding fine chemical applications involving high vacuum and high temperatures-such as short-path distillation, molecular distillation, and thin-film evaporation. Its primary function is to facilitate the continuous, stable, and precise transfer of materials into and out of distillation systems.
It is particularly well-suited for handling heat-sensitive and high-viscosity substances-including Vitamins A and E, oils and fats, fragrances, higher alcohols, and pharmaceutical intermediates-and serves as a critical metering component within molecular distillation units.
Application of the molecular distillation gear metering pump
-
1. Molecular Distillation Unit Feed Metering Pump
2. Distillation System Reflux Pump and Light Component Discharge Pump
3. Discharge and Transfer Pump for Heavy Components and High-Viscosity Bottoms
4. Purification Processes for Vitamin A/E, Fish Oil, Natural Flavorings, Sterols, Dimer Acids, etc.
5. Continuous Proportioning and Quantitative Transfer under High-Temperature and High-Vacuum Conditions
Advantages of molecular distillation gear metering pump
-
1. Molecular distillation requires a high - vacuum environment, and dedicated pumps can meet this requirement, ensuring the vacuum degree of the system during the distillation process. This provides a favorable environment for molecular distillation, allowing light molecules to smoothly fly from the evaporation surface to the condensation surface, achieving efficient separation.
-
2. The circular - arc rotors of molecular distillation pumps have a very low relative sliding speed, operate smoothly, have less wear, no oil - trapping phenomenon, and low noise. Magnetic gear pumps and other pumps, which use magnetic drive, can also reduce vibration and noise, have little impact on the process, and are conducive to maintaining a stable distillation process and ensuring product quality.
Performance parameter table
| Type | single turn displacement (cc/rev) | rated flow at maximum speed (L/Min) | max speed of revolution (rpm) | inlet/outlet dimension |
| DS158 | 1.58 | 1.5 | 980 | G1/2" |
| DS253 | 2.53 | 2.4 | 980 | G1/2" |
| DS348 | 3.48 | 3.4 | 980 | G1/2" |
| DS475 | 4.75 | 4.6 | 980 | G1/2" |
| DS712 | 7.12 | 6.9 | 980 | G1/2" |
| DS950 | 9.50 | 9.3 | 980 | G1/2" |
FAQ
Q: The size of inlet and outlet can be customized?
A: Yes, can do it.
Q: How long is your delivery time?
A: generally it is 5-10days if the goods are in stock, or it is 15-20days if the goods are not in stock.
It is according to quantity.
Q: How to choose the most suitable model.
A: You can choose in the parameters or you can tell me the working condition: such as pumping liquid, flow rate, pressure, temperature and viscosity.
Q: what is your product MOQ of it?
A: our company is pleasure accept all items 1 pcs order.
