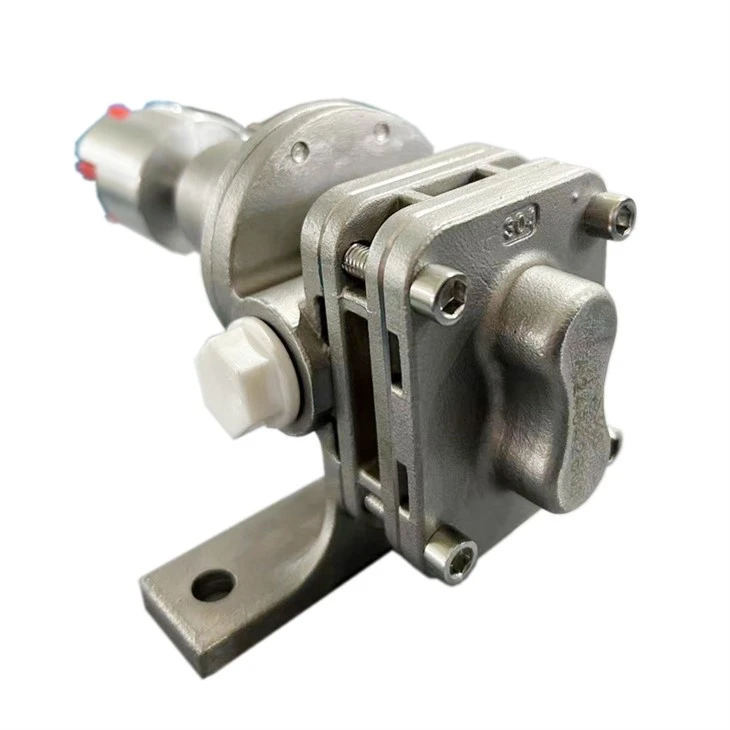

Miniature Metering Pump

Miniature Metering Pump

With the good fluid compatibility, universal pump is widely used in differernt industries. Simple structure, highprecision, pulse-less uniform flow,small size
Send Inquiry
Product Introduction

Main features

The miniature gear pump is a fluid delivery unit composed of a micro pump head, driver and motor.

It is especially suitable for various liquid media (corrosive, toxic, easy flammable and explosive, hydraulic) transportation,sampling, circulation, shunting, spraying, flushing, pouring, cooling and lubrication.



miniature gear pump

Working principles

Fluid enters the pump via the inlet and fills the space between the gears.

As the gears rotate, fluid will be contained in the space formed by two gears and internal pump wall.

The fluid is brought to the outlet side by the turning gears where they mesh.

This meshing process forces the fluid out of the pump through the outlet.

The established pressure is dependent on the pump size, gear clearance and pump rotating speed.

miniature gear pump -2





Pump structure

1. Small model and compact structure

2. 304 or 306 stainless steel pump body (required requirements), PEEK, PTFE, PPS gear, with self-lubrication, corrosion resistance, high temperature resistance, organic solvent resistance, high strength and friction resistance

3. Mechanical seal, no leakage.

4. The flow rate can be adjusted as needed.

5. The motor replacement is flexible, and various motors can be replaced according to actual needs.

6. Smooth operation and low noise

Miniature Metering Pump



Performance parameter table

1.Material: structural steel, cast iron, reinforced carbon composite material

2.Sealing: single and double mechanical seal, packing seal

3.Installation: motor installation, foot installation

4.Pressure: 1-150bar

5.Viscosity: up to 1000cps

Temperature: -18-150℃ (explain it before selection if the temperature is over 90℃)





Type

Single displacement(cc/rev)

Max flow(L/min)

Max speed(RPM)

Inlet/outlet dimension

FS110

1.1

1.6

1500

G 3/8"

FS158

1.58

2.3

1500

G 1/2"

FS253

2.53

3.7

1500

G 1/2"

FS348

3.48

5.2

1500

G 1/2"

FS475

4.75

7.0

1500

G 1/2"

FS712

7.12

10.6

1500

G 1/2"

FS950

9.50

14.0

1500

G 1/2"





Miniature Metering Pump
