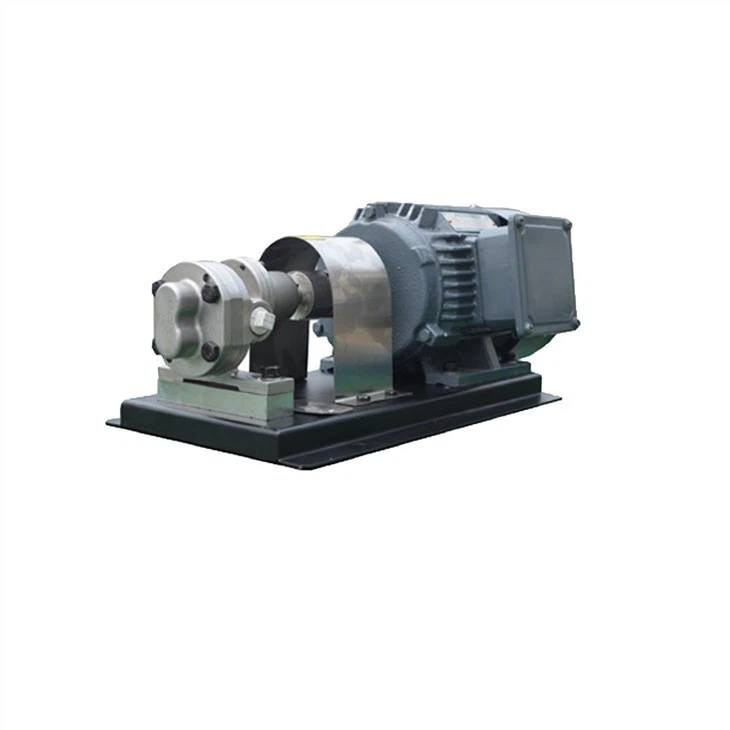

High-quality Carbon Structural Steel Gear Metering Pump For Furan Resin

High-quality Carbon Structural Steel Gear Metering Pump For Furan Resin
High-quality Carbon Structural Steel Gear Metering Pump For Furan Resin
High-quality Carbon Structural Steel Gear Metering Pump For Furan Resin

High-quality Carbon Structural Steel Gear Metering Pump For Furan Resin

high-quality carbon structural steel gear metering pump for furan resin. the gear is made of martensitic stainless steel or non-metallic wear-resistant material, The shaft is made of high-quality carbon steel or martensitic stainless steel,with high hardness and good wear resistance,Suitable for resin sand mixer with an output of 3-100 tons/hour.

Send Inquiry

Product Introduction

high-quality carbon structural steel gear metering pump for furan resin the advantage as follow;

1. The pump body is made of high-quality carbon structural steel;

2. The gear is made of martensitic stainless steel or non-metallic wear-resistant material;

3. The shaft is made of high-quality carbon steel or martensitic stainless steel;

4. The gears and shafts have undergone strict quenching and tempering and surface hardening treatment, with high hardness and good wear resistance.

5. Gear pumps mainly adopt two sealing methods: single mechanical seal and packing seal.

6. Pumps can transport furan resin;

7. Suitable for resin sand mixer with an output of 3-100 tons/hour.

B series-1

B series-2

Furan process equipment selection table：

Sand mixer model（t/h)	Applicable medium	Flow rate（L/h)	Pump model	Motor type
5	Furan resin	30-70	BS158	0.55
5	Sulfonic acid curing agent	9～40	AS190	0.55
8	Furan resin	50～110	BS253	0.55
8	Sulfonic acid curing agent	15～65	AS190	0.55
10	Furan resin	65～130	BS348	0.55
10	Sulfonic acid curing agent	20～80	AS285	0.55
12	Furan resin	80～160	BS475	0.55
12	Sulfonic acid curing agent	25～100	AS285	0.55
15	Furan resin	100～200	BS475	0.55
15	Sulfonic acid curing agent	30～120	AS380	0.55
20	Furan resin	120～260	BS712	0.55
20	Sulfonic acid curing agent	45～160	AS380	0.55
25	Furan resin	170～320	BS950	0.75
25	Sulfonic acid curing agent	50～200	AS570	0.55
30	Furan resin	200～400	BM142	1.1
30	Sulfonic acid curing agent	60～240	AS570	0.55
40	Furan resin	250～550	BM142	1.1
40	Sulfonic acid curing agent	80～320	AS855	0.55
60	Furan resin	400～800	BM214	1.5
60	Sulfonic acid curing agent	100～400	AS855	0.55

Note: 1. The flow range is a theoretical calculation value, for reference only

2. If the output is more than 60 tons, please call to inquire about selection
